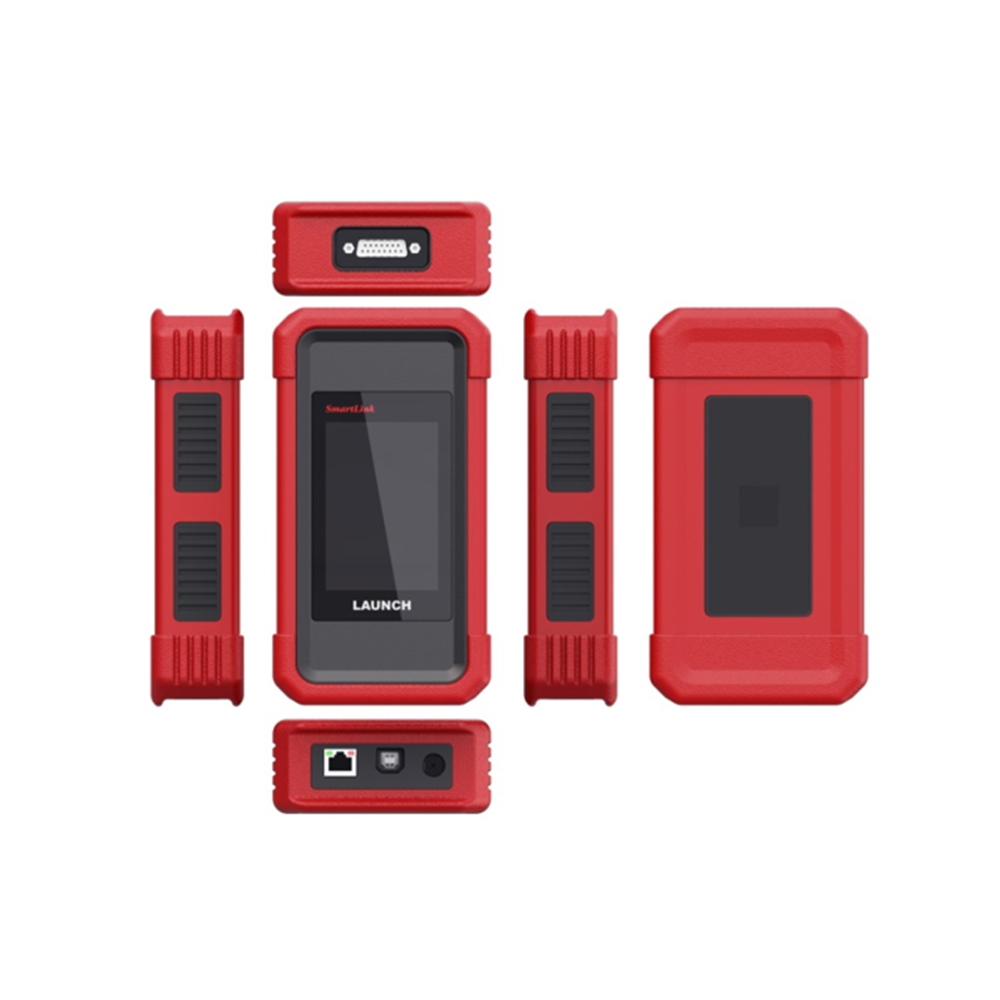

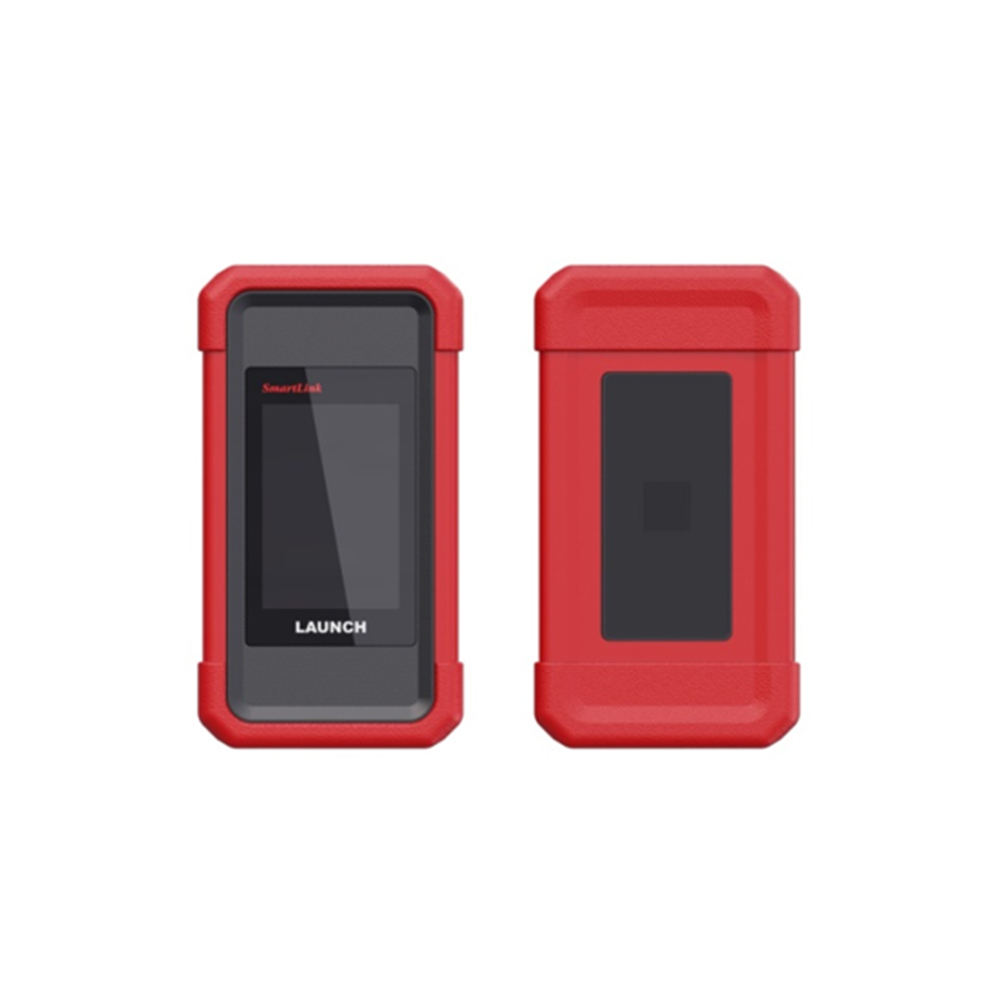

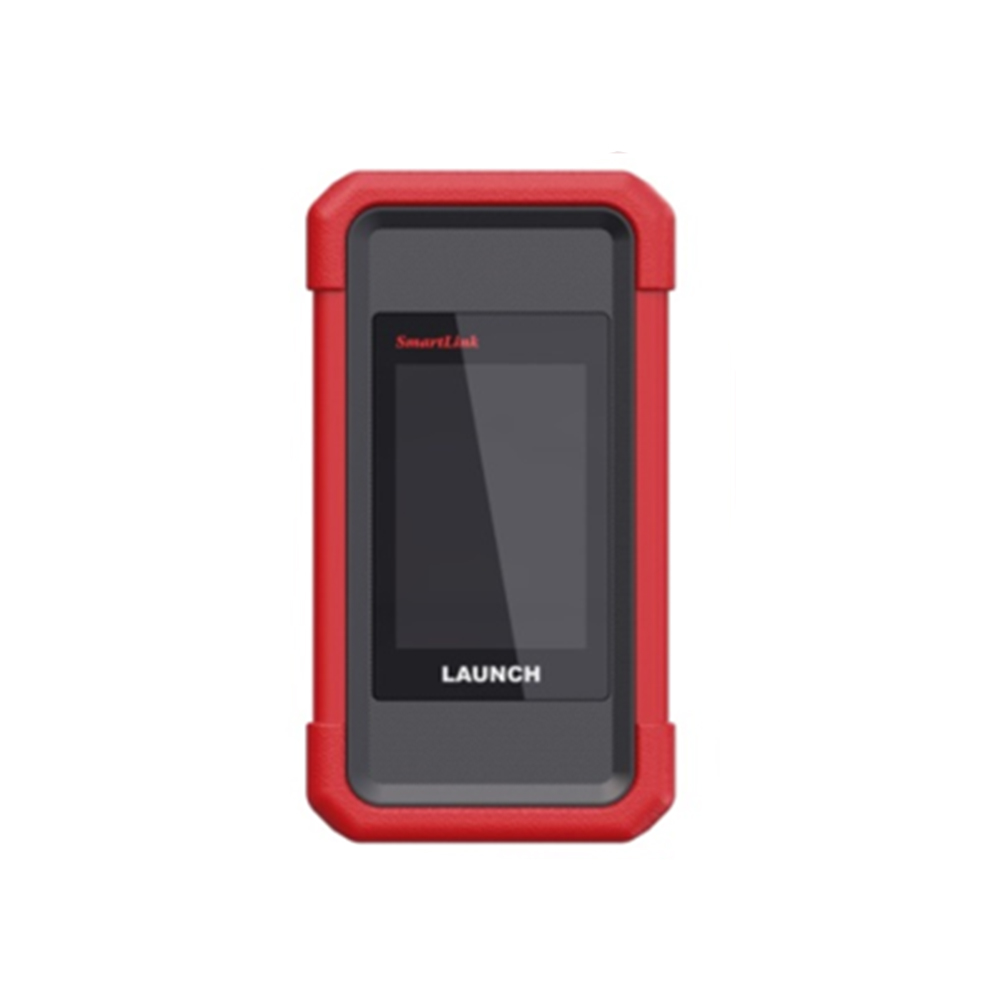

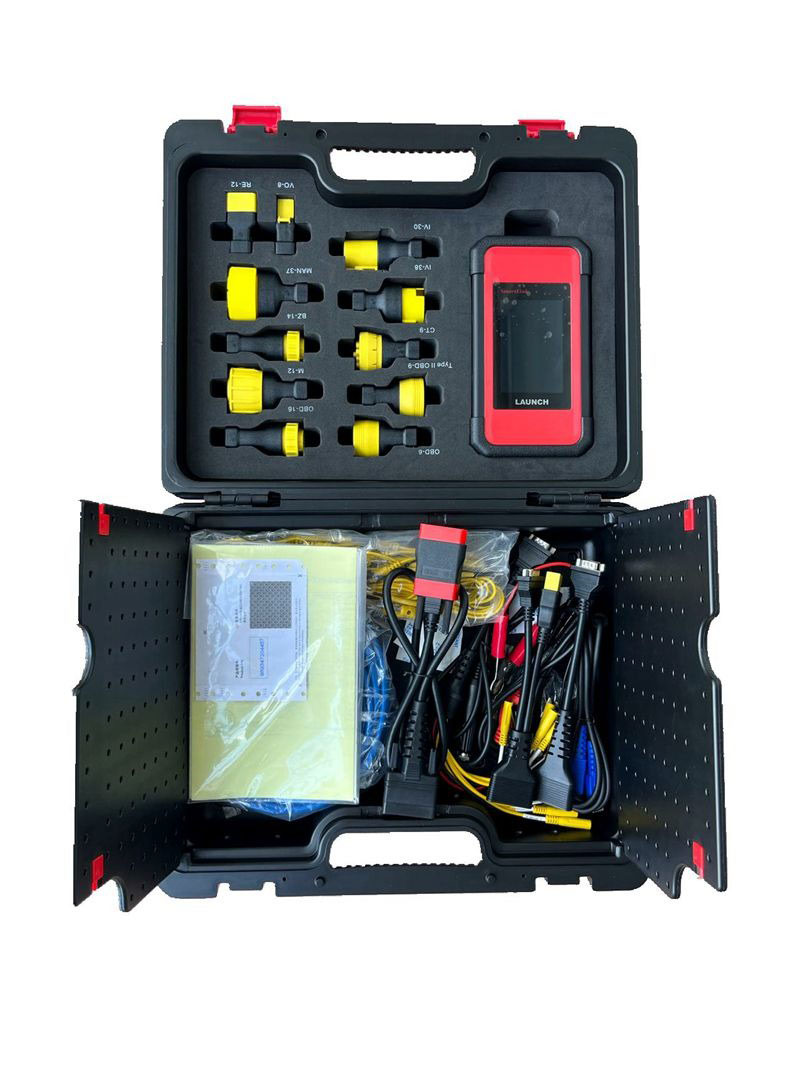

Launch X-431 SmartLink C 2.0 Heavy Duty Truck Module
What is Launch X431 SmartLink C 2.0?
Launch X-431 SmartLink C 2.0 is a heavy-duty vehicle diagnostic module developed by Launch Company based on Linux system, dual processor Cortex-A7+Cortex-M7, 8G storage, 256M storage, 320*480 resolution. It supports Bluetooth, Wi-Fi, USB and other communication methods, and can be used with X-431 PRO3S and X431 V+ 4.0 series. The SmartLink C applies to vehicles that comply with CAN/DoIP/CAN FD/J2534 diagnostic protocol standard.
It also support full system fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action test. Covering Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engine diagnostic software, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software.
Work as a VCI (Vehicle Communication Interface)
Work as a Local J2534 PassThru Device
Work as a Remote J2534 PassThru Device
Note: LAUNCH X-431 HD SmartLink C 2.0 Module cannot be used alone. It only works with LAUNCH Tablet of X431 V+, X431 PRO3, X-431 PRO3S Series.
The SmartLink C system consists of the following two parts:
1.SmartLink Service Platform — For binding the SmartLink C dongles and posting the remote repair orders (*Note: Orders can be submitted only after the SmartLink C dongle is successfully bound)
2. SmartLink C Dongle — Connects with vehicle’s Data Link Connector (DLC) to obtain vehicle information before submitting repair orders.
Launch SmartLink C 2.0 User Manual
Smart Link C 2.0 Specifications:
|CPU||dual processor: Cortex-A7+Cortex-M7|
|working voltage||9V DC—36V DC|

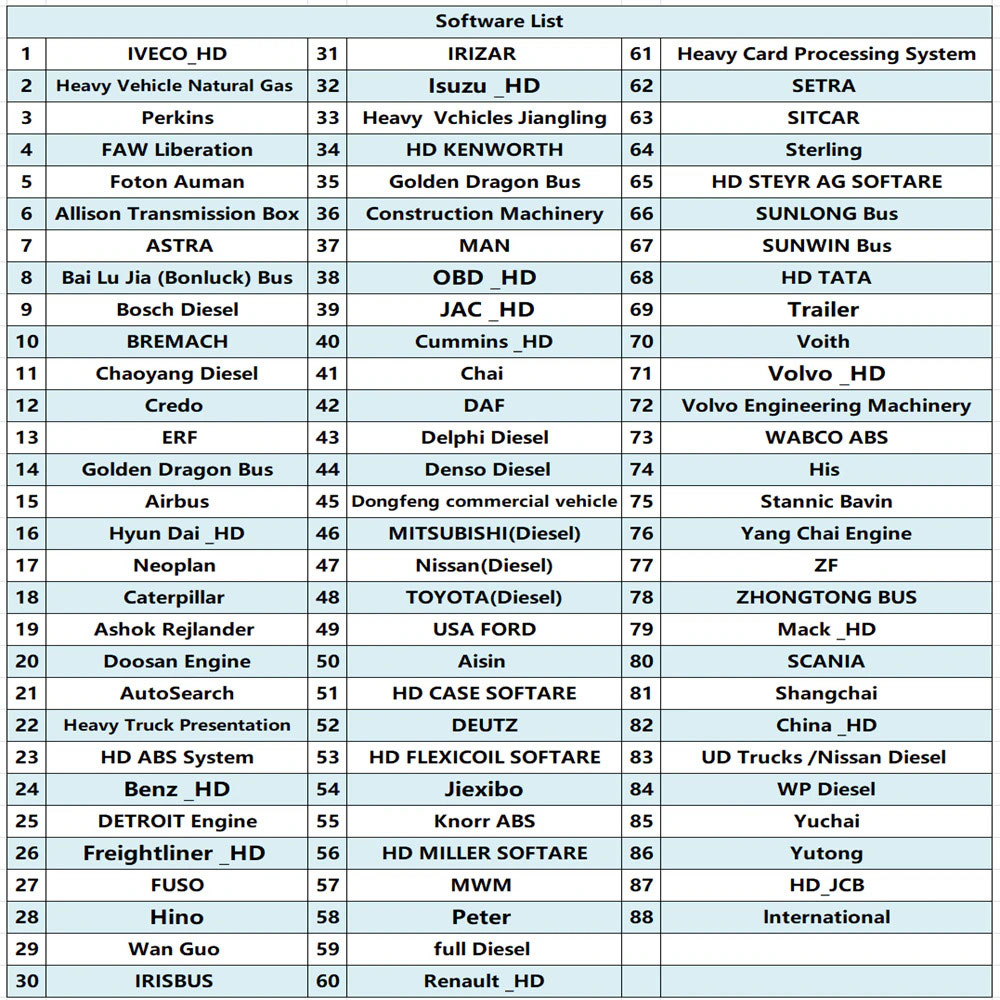

Launch SmartLink C 2.0 Vehilce List
