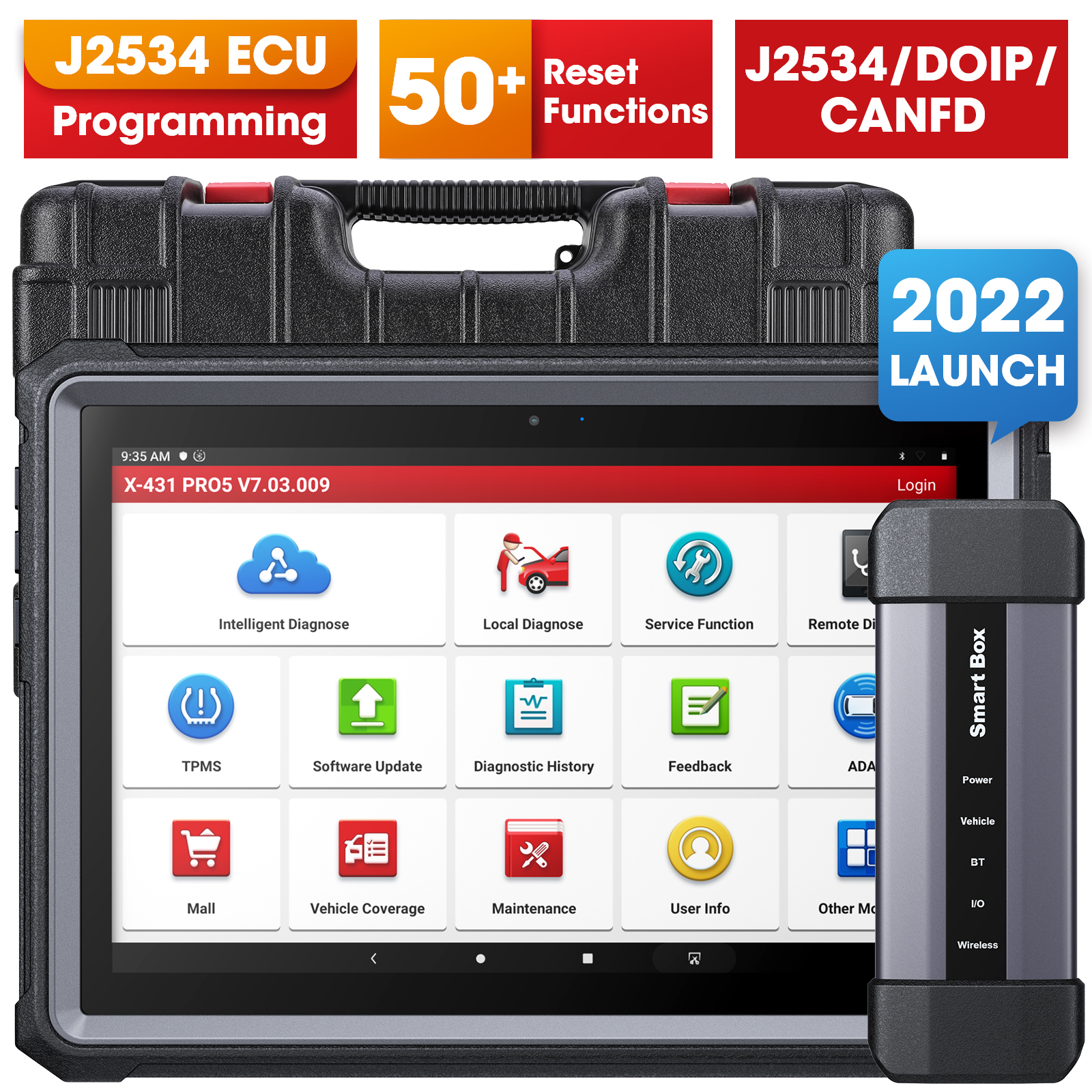

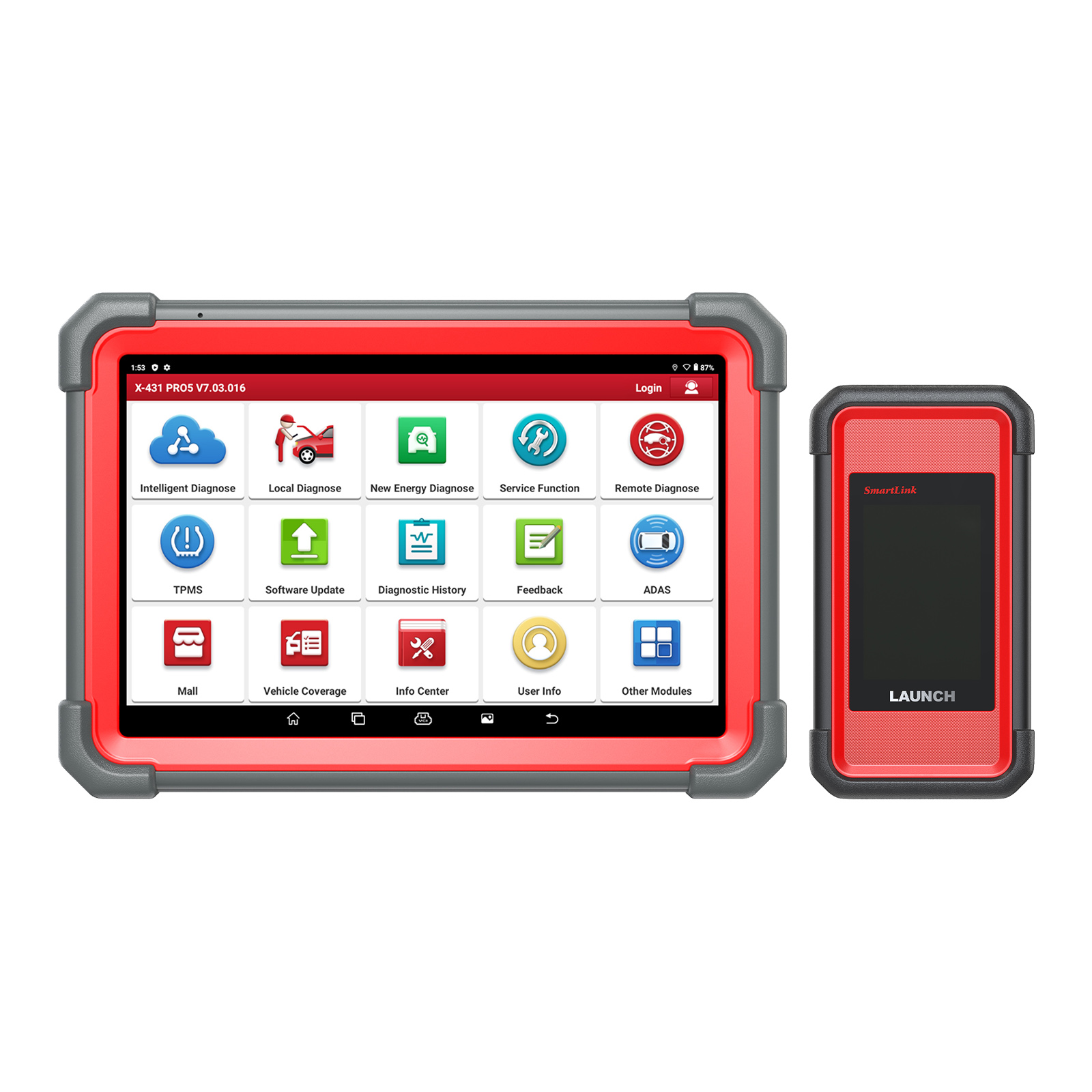

LAUNCH X431 PRO5 PRO 5 Car Diagnostic Tools Automotive Tool Full System OBD2 Scanner Intelligent Diagnosis Tool
Launch X-431 PRO5 opens the era of innovative dual diagnostic modes (local diagnosis and SmartLink remote diagnosis). The hardware of X-431 PRO5 is greatly improved. It adopts the Android 9.0 system, a 8-core 1.8GHz processor and a 1920×1200 IPS HD display screen, providing 3GB RAM memory and 32GB ROM storage which ensures faster and more stable running. It also comes with a bracket, making it more convenient to use.
LAUNCH X431 PRO5 Highlights:
1. 2022 New Arrival, No IP limitation, 2 Years Free Update
2. Multi-Language Support: English, Japanese, Korean, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian , Finnish, Hungarian, Swedish, Turkish, Serbian, Croatian…
3. Upgraded from X431 V+/Pros Mini/PRO3/TURBO/Throttle
4. SmartBox 3.0 — Multifunctional Connector
5. OE-level Car Coverage: 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
6. Intelligent Diagnoses: AutoVIN & AutoScan powers all-systems DTC scans that clock in at an average of < 3 minutes.
7. Full Bidirectional Active Test
8. FCA AutoAuth Access: Bypass SGM in FCA vehicles seamlessly and within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. *Need AutoAuth subscriptions.
9. VAG Guided Function: Skip the routine procedure of entering the security access code & channel number for VW, Audi, Skoda, Seat vehicles.
10. Add Modules to Expand Features: ADAS Calibration Toolkit; VSP-600 VideoScope; X431 TPMS TSGUN; BST360 Bluetooth Battery Tester; X-PROG & X-PROG3 Immobilizer.
11. Non-16pin Connectors & Cables Kit: Enable to work on varied vehicles across the world.
12. User-Oriented – One-touch software updates
13. Great Combination: Android 9.0 OS, 8-core 1.8GHz processor, 4GB RAM & 64GB ROM (128G expandable), 10.1” HD 1920*1200 touchscreen, 8MP rear & 5MP front camera, 7000 mAh battery, etc.
LAUNCH X431 PRO5 Features:1. Upgraded from X431 V+/Pros Mini/PRO3/TURBO/Throttle
A rich array of future-proof functions for productive works:
1) SmartBox 3.0, J2534 ECU Programming, Intelligent AutoVIN & AutoScan, Active Tests, All System Diagnostics, VAG Guided Function, FCA AutoAuth Access, etc.;
2) Advanced Online ECU Coding & Adaptations brings more personal settings;
3) 50+ service functions with more frequent updates to support more vehicles.

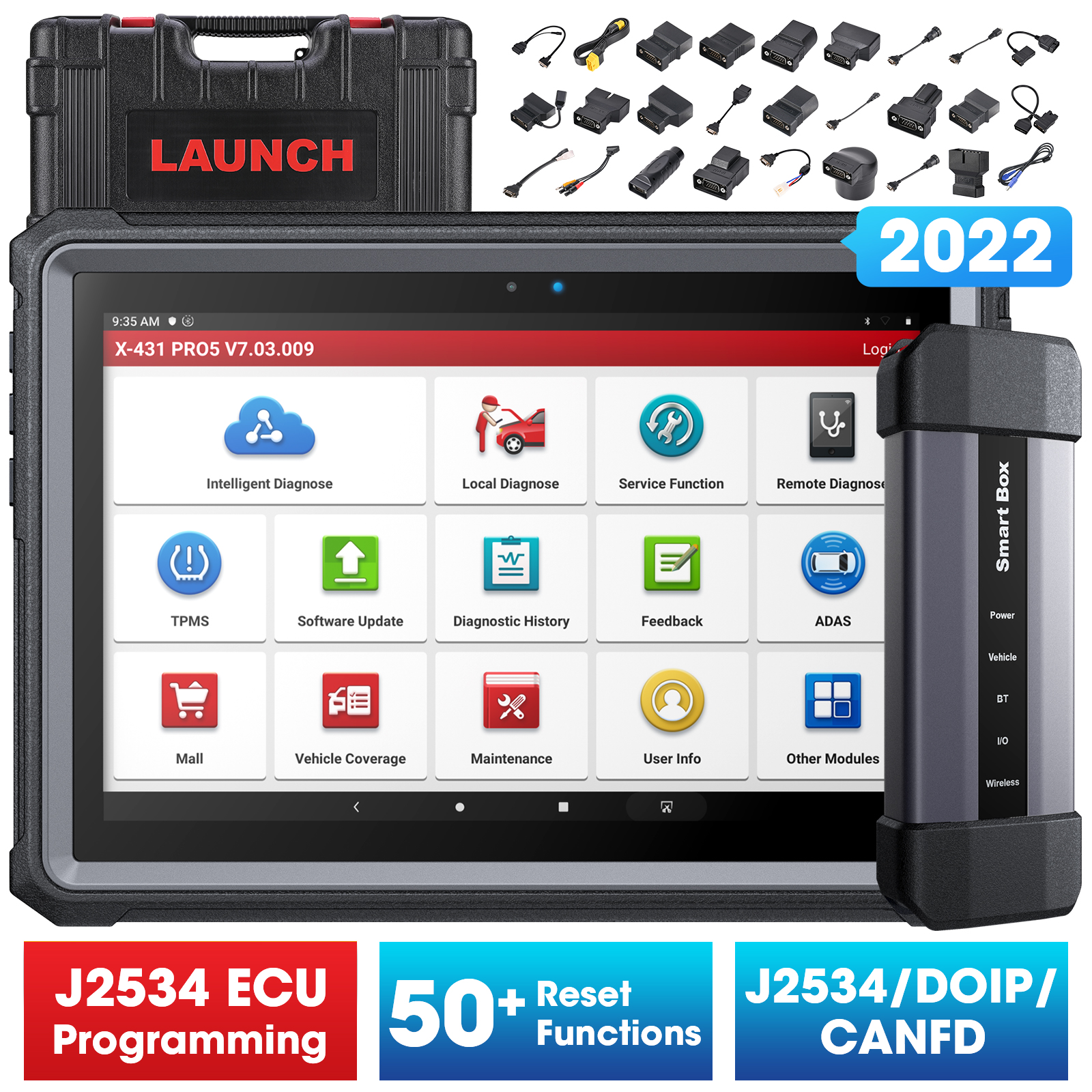

2. SmartBox 3.0 — Multifunctional Connector
1) Fix the most vehicles with OE-level vehicle coverage; meet SAE standards for J2534-1 & -2, CANFD, DOIP and support DC9-36V for HD Vehicles;
2) Serves as a wireless VCI.
3. OE-level Car Coverage
OE-level Car Coverage – 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
4. Intelligent Diagnoses
AutoVIN & AutoScan powers all-systems DTC scans that clock in at an average of < 3 minutes.
5. Full Bidirectional Active Test
Effectively test car components on demand.
6. FCA AutoAuth Access
Bypass SGM in FCA vehicles seamlessly and within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. *Need AutoAuth subscriptions.
7. VAG Guided Function
Skip the routine procedure of entering the security access code & channel number for VW, Audi, Skoda, Seat vehicles.
8. Non-16pin Connectors & Cables Kit
Enable to work on varied vehicles across the world.
9. User-Oriented – One-touch software updates
24/7 online feedback; save, record data, and automatically generate reports to share via email; 12-channel graphic live data stream displayed in one screen with max. 4 streams can be merged; 25 languages menu.
10. Great Combination
Android 9.0 OS, 8-core 1.8GHz processor, 4GB RAM & 64GB ROM (128G expandable), 10.1” HD 1920*1200 touchscreen, 8MP rear & 5MP front camera, 7000 mAh battery, etc.
LAUNCH X431 PRO 5 Functions:
1. LAUNCH X431 SmartBox 3.0: As a J2534 Reprogramming Tool
Serve as J2534-Compliant VCI – Support J2534 protocol, compatible with Toyota, Honda, Volvo, VW, GM, Chrysler, Benz, Jaguar, Land Rover; offering cost-effective access to data and OE programming downloads from vehicle manufacturers.
Serve as the VCI Box for Wireless Diagnostics – Transmit vehicle data to the diagnostic tablet without a physical connection.
Compatible with new communication protocols of CANFD (compatible with some GM car models), and DOIP (compatible with BMW E/F/G Chassis, Jaguar, Land Rover), and support DC9-36V for HD Vehicles (need the extra purchase of HD software, non-16pin HD adaptors).
How to Use SmartBox 3.0 as a J2534 Reprogramming Tool?
Download the OEM software in Automakers’ Service Webs to your computer. You can reach us to get web sites.
Connect the SmartBox 3.0 to your computer with the included USB cable, or via the stable and solid 5G Wi-Fi network.
Connect the SmartBox 3.0 to your vehicle’s DLC port with/without the included extended OBDII cable.
Download and install the drivers for SmartBox 3.0 at the LAUNCH official site.
Run “SmartBox Tool 3.0″ and there you go.
2. ECU Coding: Alter the Car on Your Demand
From manufacturer-specific reprogramming to full diagnostic capability, this LAUNCH diagnostic scanner also has the magic power “ECU Coding” to keep you on the cutting edge:
1) You can match, relearn, and code the newly installed ECU module after making repairs or replacements.
2) You can change the market-specific settings to activate higher-level car functions and disable unneeded features, breaking limitations.
3.Work for Both 12V Cars and 24V Trucks
If you need heavy duty truck software, please contact with us and buy software from us.
then we will help you authorize heavy duty truck software and send the Non-16pin connector kit to you and you can use this disgnostic tool to diagnose 12v cars and 24v trucks without HD module.
4.Active Test—-Enhance Your Experience.
This X431 scan tool also functions as a bi-directional car scanner to perform specific tests and functions without using the vehicle’s own controls to save time. For example: using the diagnostic tool to command the fuel pump on. If the fuel pressure gauge shows proper fuel pressure, you’d know the fuel pump circuit and pump are functioning properly. The process just takes < 5 minutes. If test manually? Three times as long!
Guiding you to be an expert in automotive diagnostic.
Compatible with Volkswagen / Audi / Skoda / Seat etc.
6.Advanced ALL Systems Diagnoses
This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
1) Retrieve ECU information including unit type, version numbers, and other specifications, etc.
2) Read & erase DTCs to locate problem areas and clear the codes.
3) View Live Data of each parameter item.
4) This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance performance, save energy, reduce emissions, and everything else.
7. 50+ Hot Reset & Relearn Maintenance Services
You can easily choose multiple commonly-used service functions, follow their clear and precise instructions to complete complex projects much faster, including but not limited to the following:
-Oil Maintenance Light Reset: reset the oil service lamp; re-calculate the optimal oil life change interval.
-Steering Angle Reset: reset the steering angle to zero to keep the car running straight.
-Injector Coding: write the new injector code into the system to correct cylinder injection quantity.
-Electronic Parking Brake Reset: help replace and reset the brake pad.
-ABS Bleeding: help exhaust the air in ABS system in an easy way.
-Throttle Matching: initialize the throttle actuators to the default state.
-Battery Matching: register the battery after replacement.
-DPF Regeneration: help remove the particulate matter to keep the trap stable.
-Anti-theft Matching (IMMO Service): disable lost keys to prevent the car from being stolen, and add new keys. *Limited in default; can be fully upgraded with X-PROG & X-PROG3.
-Tire Pressure Reset: reset the tire pressure.
-Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.
-Headlight Matching: initialize the adaptive headlamp system.
-Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.
-Sunroof Initialization: initialize the sunroof when to be locked off, or closed.
-Tooth Learning: help to finish tooth learning after changing crankshaft in the car engine.
And many more with expanding. Function menus vary by manufacturer, year, and model. Reach us for compatibility check.
Activate all sensors,TPMS relearn,Program
AUTOVIN— Maximize Your Intelligence
This intelligent scanner will automatically identify the make, model, and manufacture year in one touch; help you match the right software so the diagnosis will be carried out fast and efficiently. You will also enjoy how smart it would be to record the test results as Inspection Report, being done by itself, letting you maintain vehicle health logs and share the information easily.
Users can carry out the remote diagnosis to ask for the remote control from other LAUNCH diagnostic tools (including but not limited to V+ 4.0), which are equipped with the remote diagnosis module as well, or from a PC client technician. This has realized the reality that a mechanic can diagnose an abnormal vehicle, which is even thousands of miles away.
10.Health Report Generate and Share
With LAUNCH X431 pro 5, you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.
11.Print Diagnostic Result
You can share car diagnostic data via email ,then print it via PC , or optional wifi , and you can order Launch x431 mini wifi printer , then one-key printing.
Wide Vehicle Coverage across the Global -American Cars
12.Boost Your Efficiency
See what your car is doing in real time; get car performance, sensor data and more at one glance! This diagnostic scanner presents the live data stream in 3 modes: a. Numbers and lists (default); b. Wave patterns (max. 12 channels in one screen); c. Merged graph (max. 4 data can be merged) for you to quickly identify if the data are in normal conditions, ranges or not.、

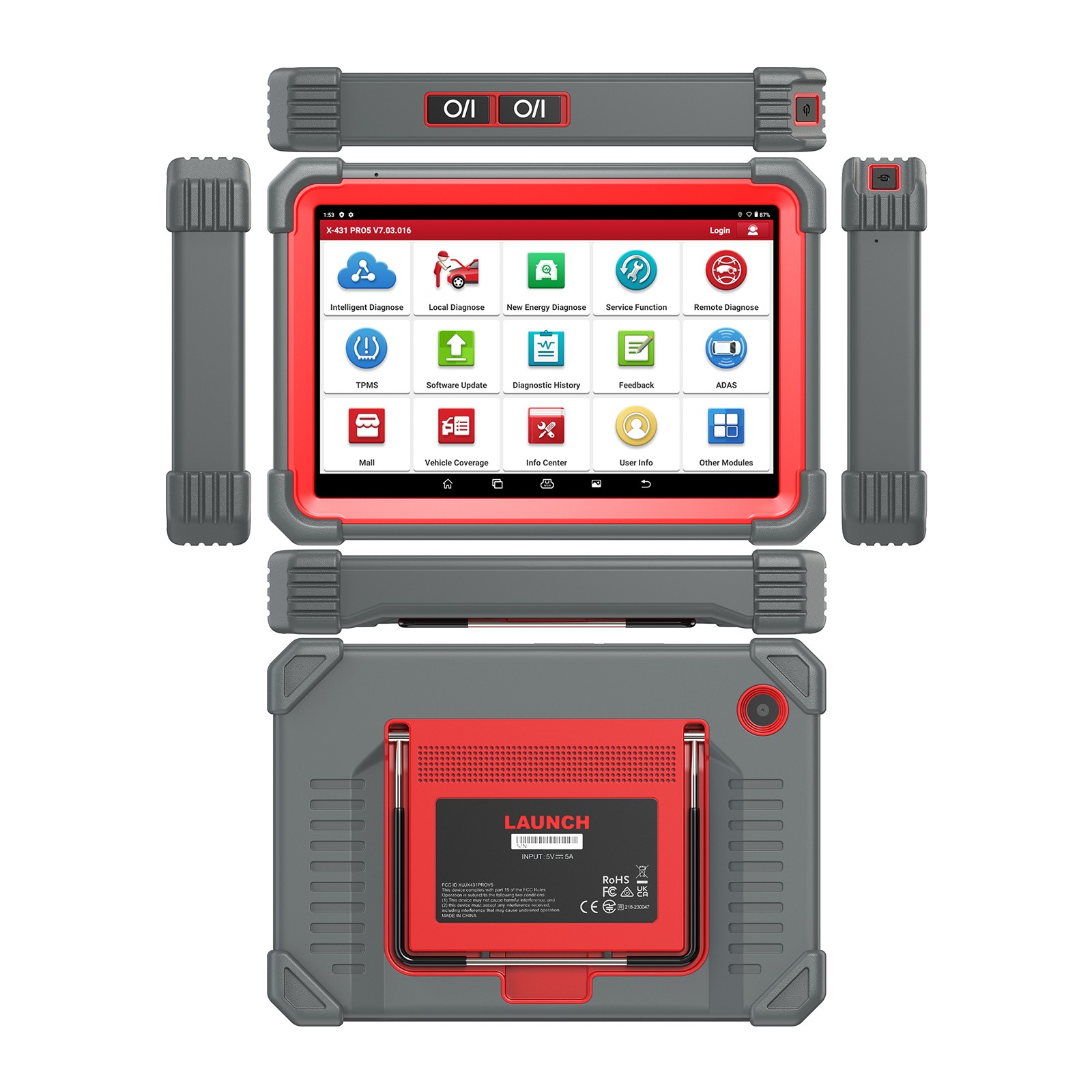

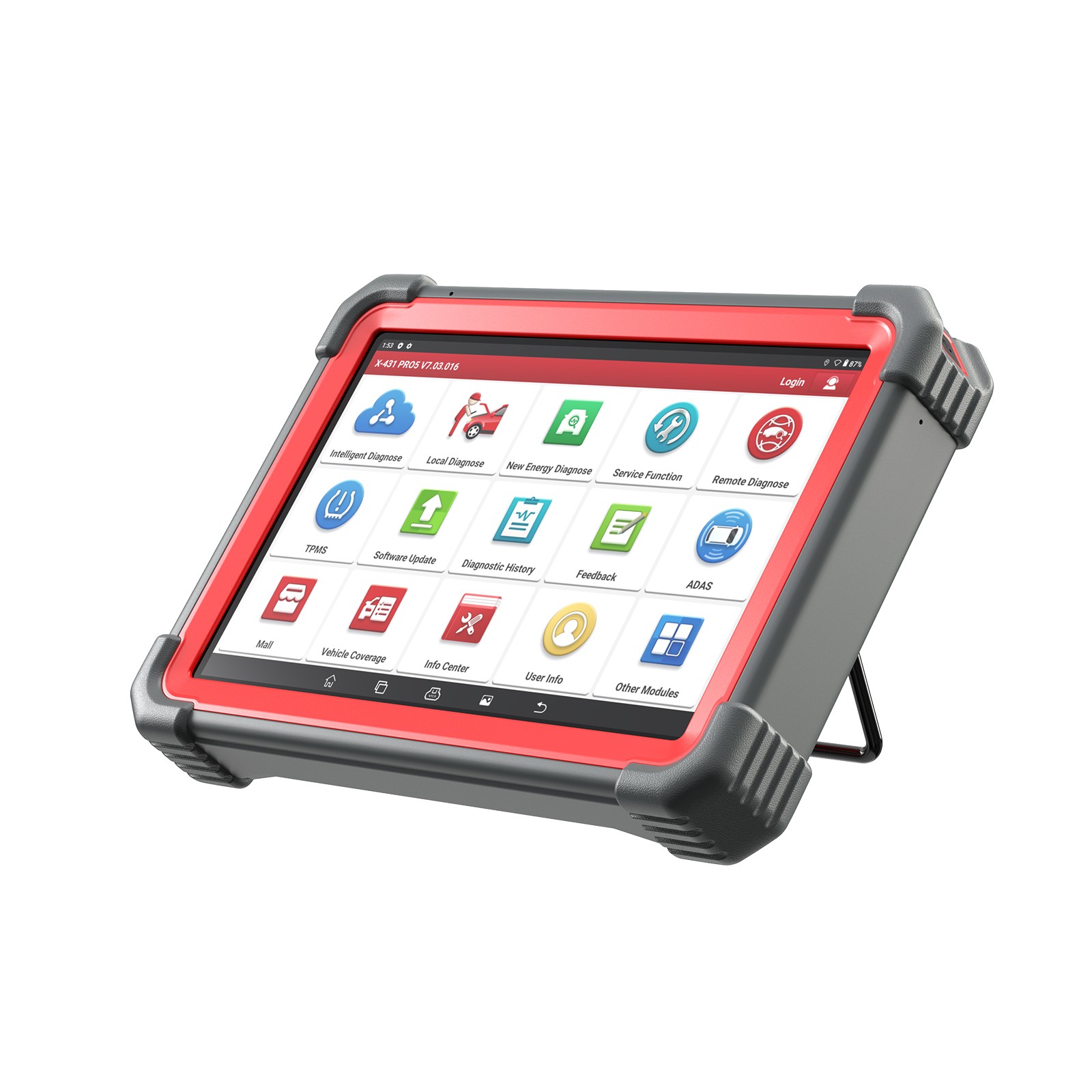

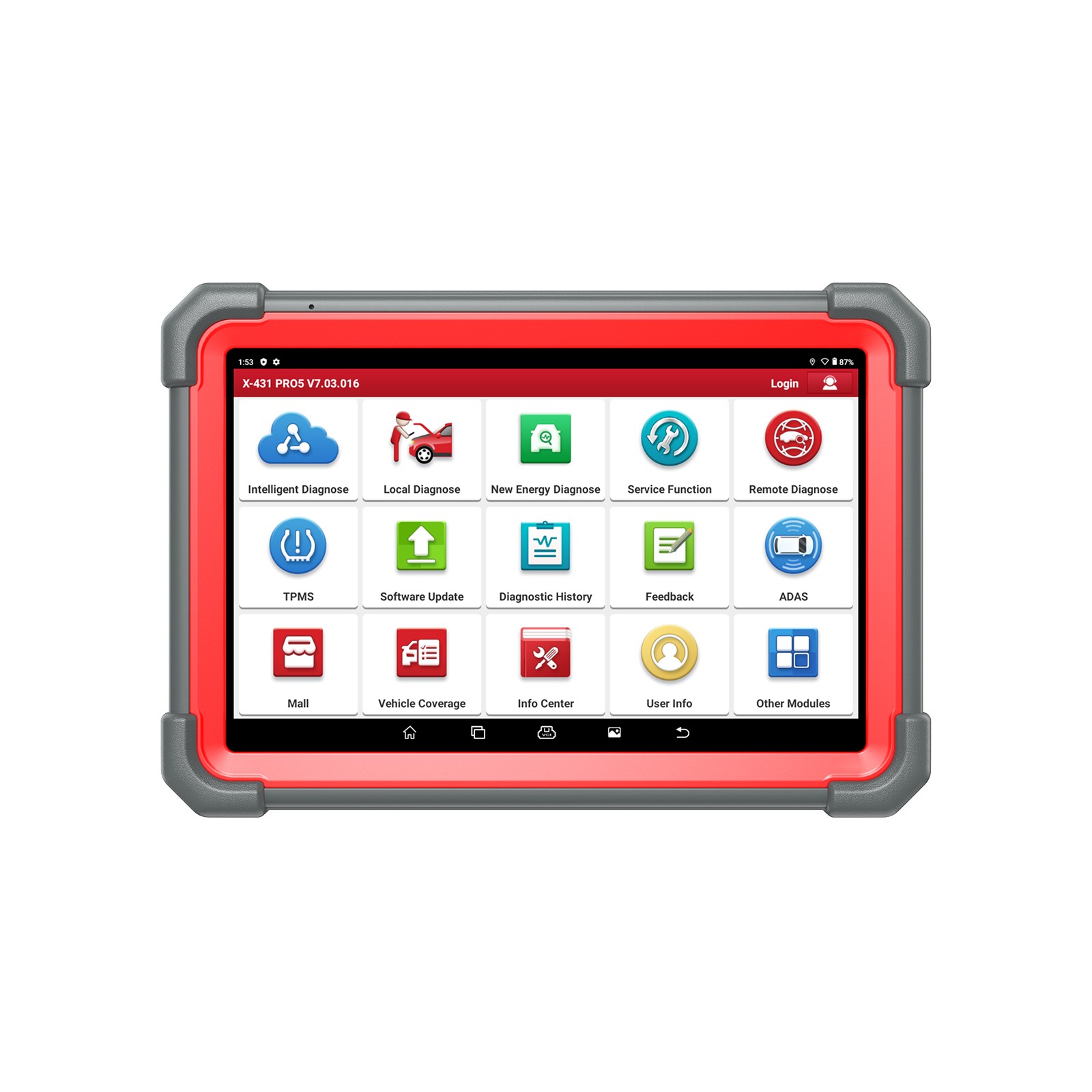

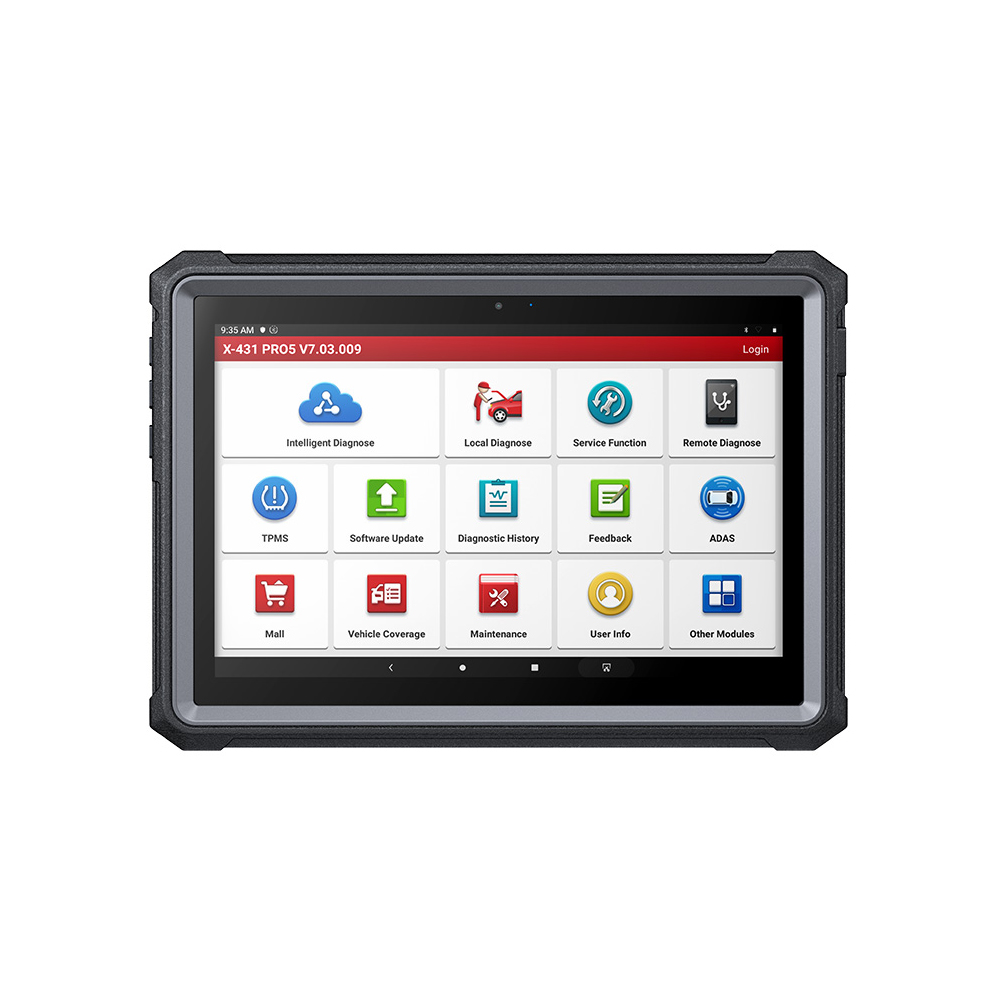

Display: 10.1-Inch ，1920×1200 FHD IPS
CPU: 8-Core Processor, 1.8 GHz
WI-FI: 2.4GHz /5GHz
RAM: 4G, ROM 64G
Battery： 7000 mAh / 3.8V
Operating voltage: 9~36V
Storage Temperature:-20℃~70℃ (-4℉~158℉)
Working Temperature:0℃~50℃ (32℉~122℉)
Specification for VCI Connector
Wi-Fi: 2.4GHz/5GHz dual-band
Working Temperature: 0℃~50℃ (32℉~122℉)
Operating voltage: DC9~36 V (open the heavy-duty card software and purchase the heavy-duty card connector
It can be easily extended to heavy trucks) Note: It is not standard and needs to be paid separately.
Dimension: 200*75*40 mm (7.87*2.95*1.57 inch)
New protocol support: J2534, CANFD, DOIP

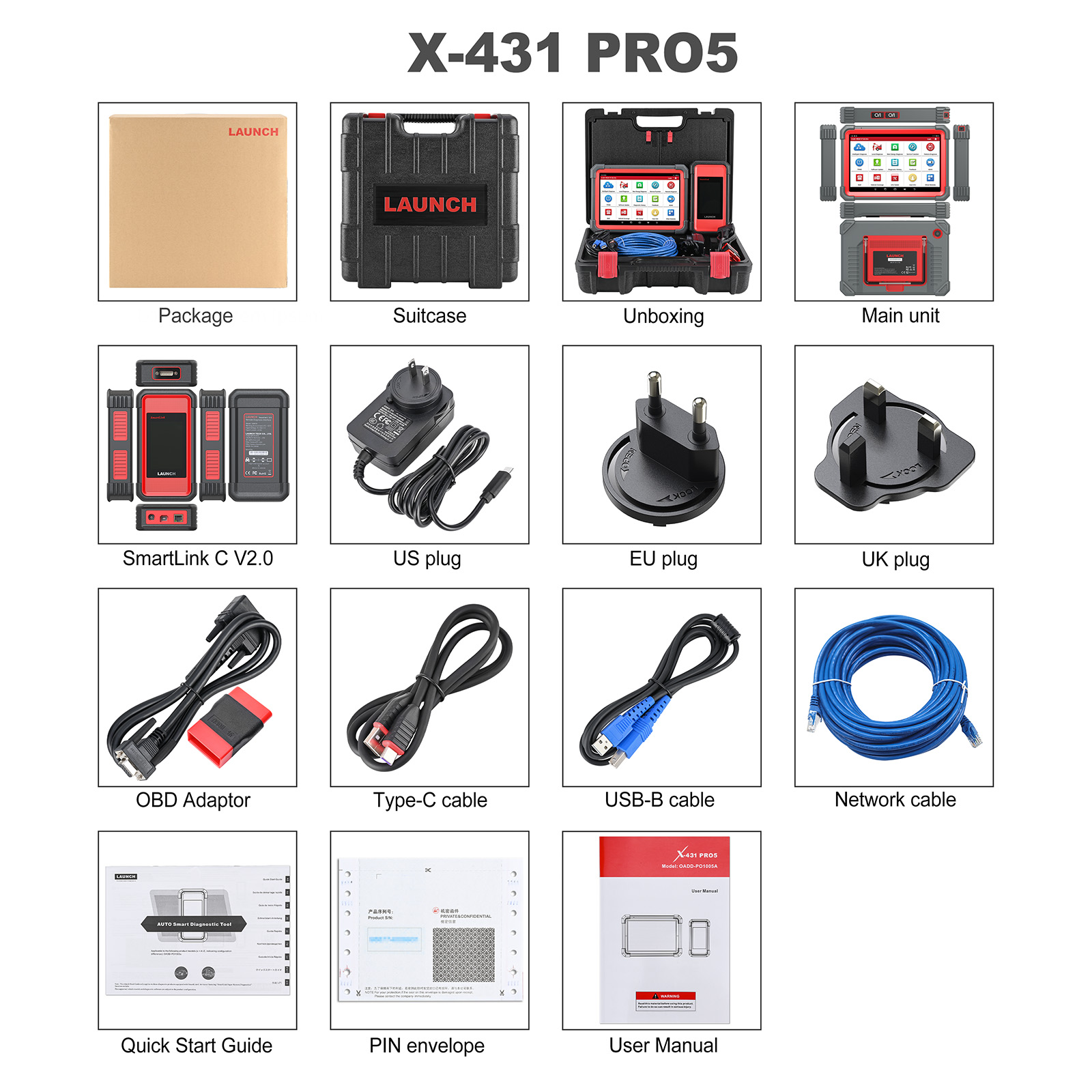

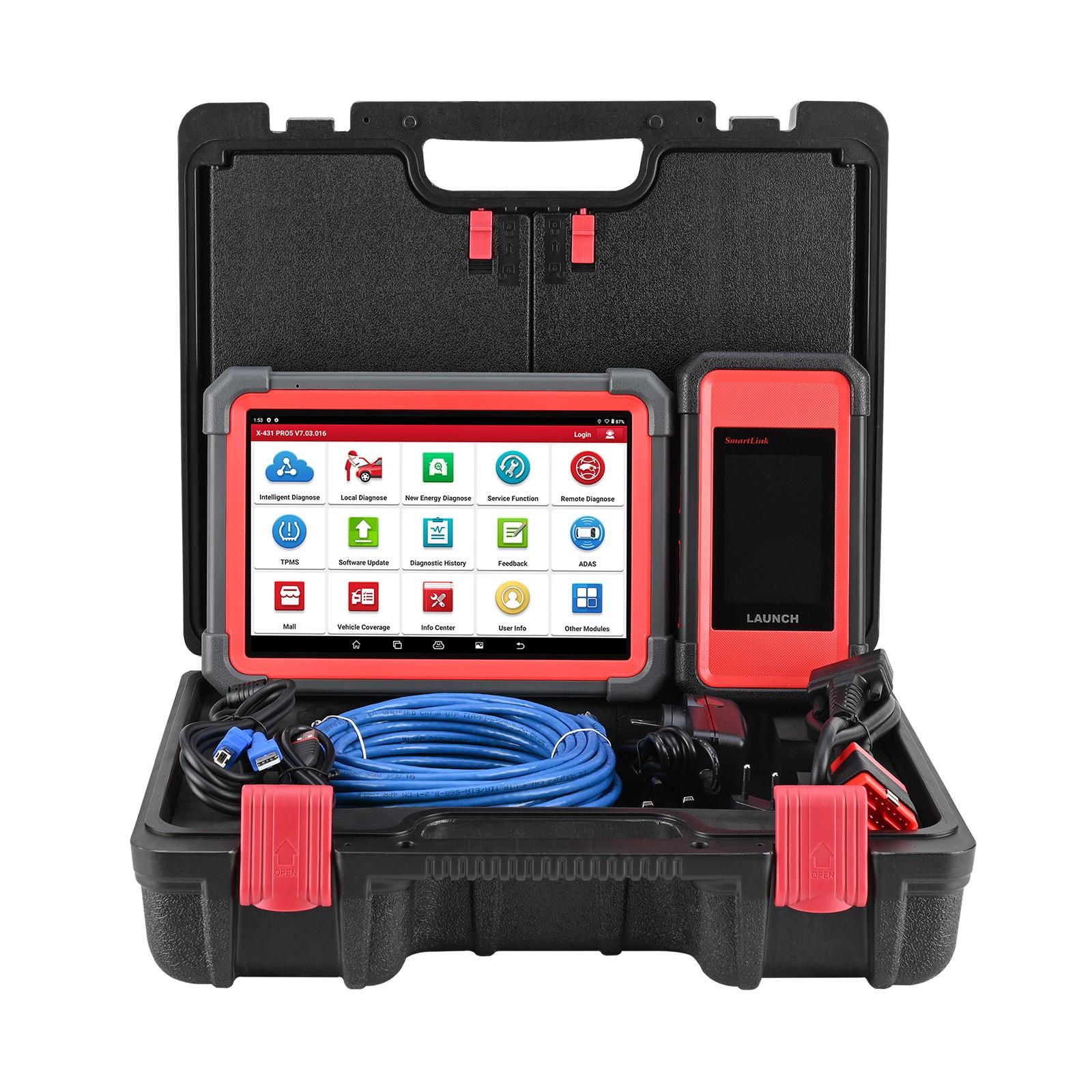

1pc x Display tablet

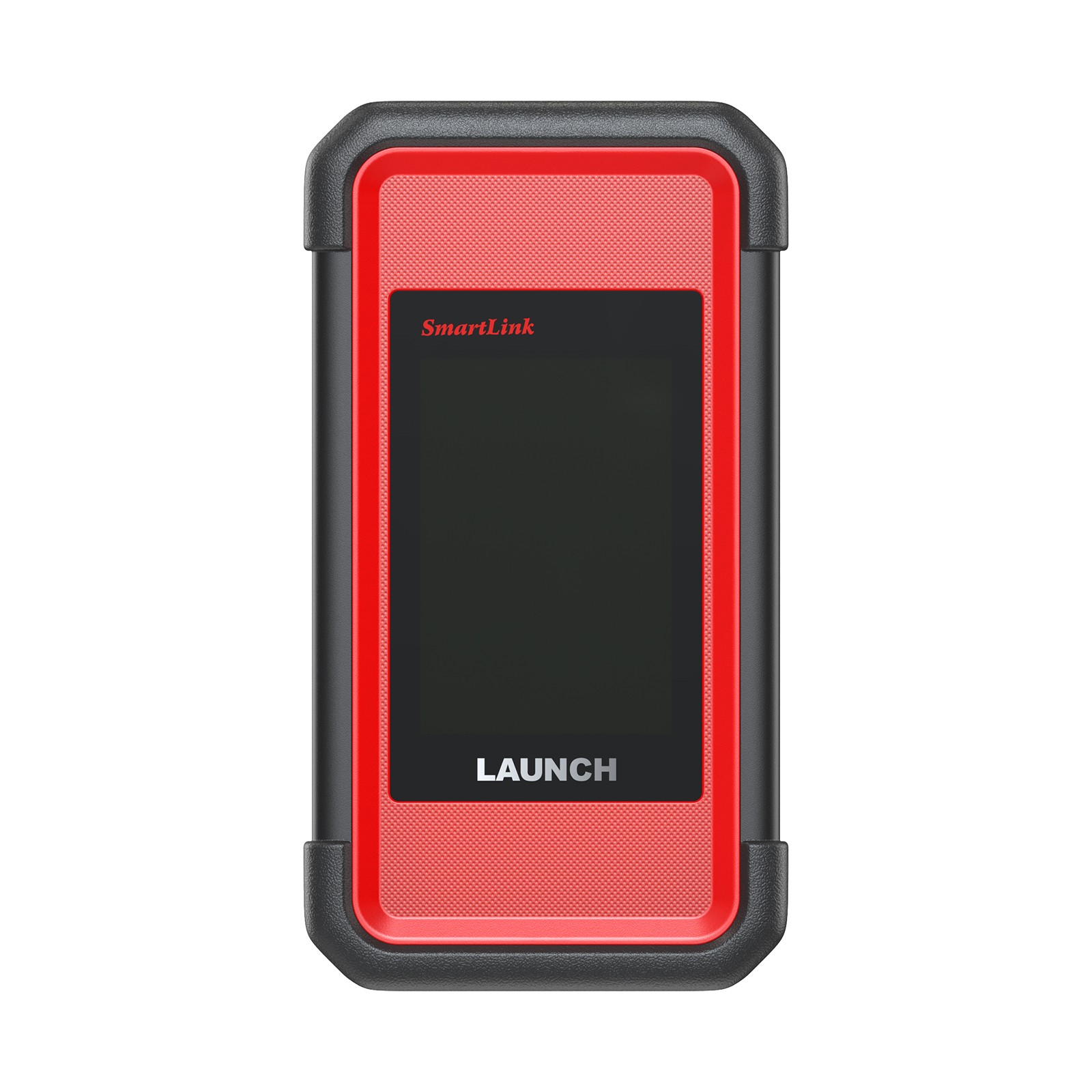

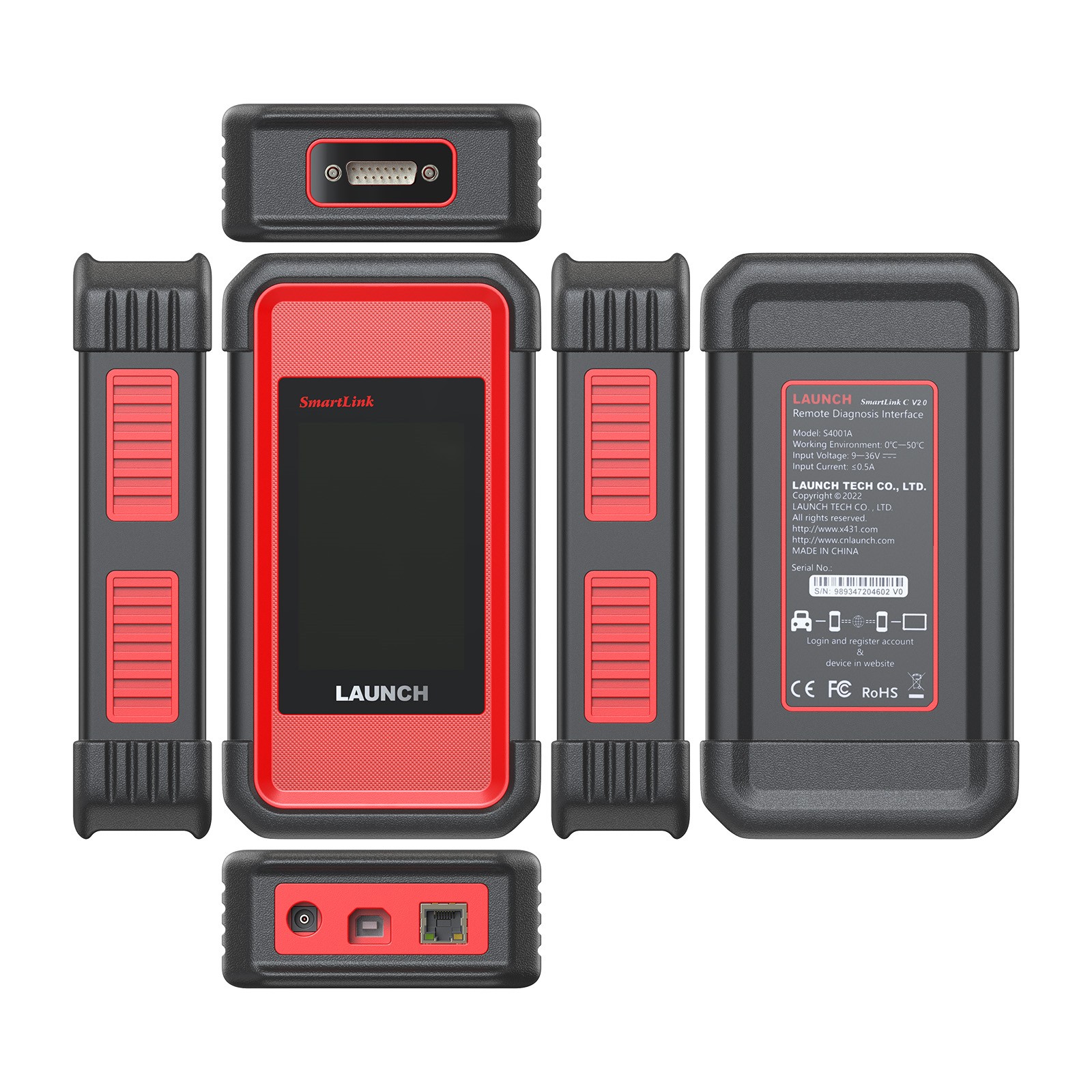

1pc x SmartLink C device
1pc x Power adaptor
1pc x OBD II extension cable
1pc x Charging cable (Type A-Micro)
1pc x Data cable (Type A- Type B)
1pc x Crossover cable
