2024 Launch X431 PRO3 ACE Diagnostic Tool Supports Online ECU Coding Topology Map CANFD DoIP SGW 38+ Service Functions


$880.00$950.00
Free Shipping

Launch X431 PRO3 ACE Diagnostic Tool Supports Online ECU Coding Topology Map CANFD DoIP SGW 38+ Service Functions

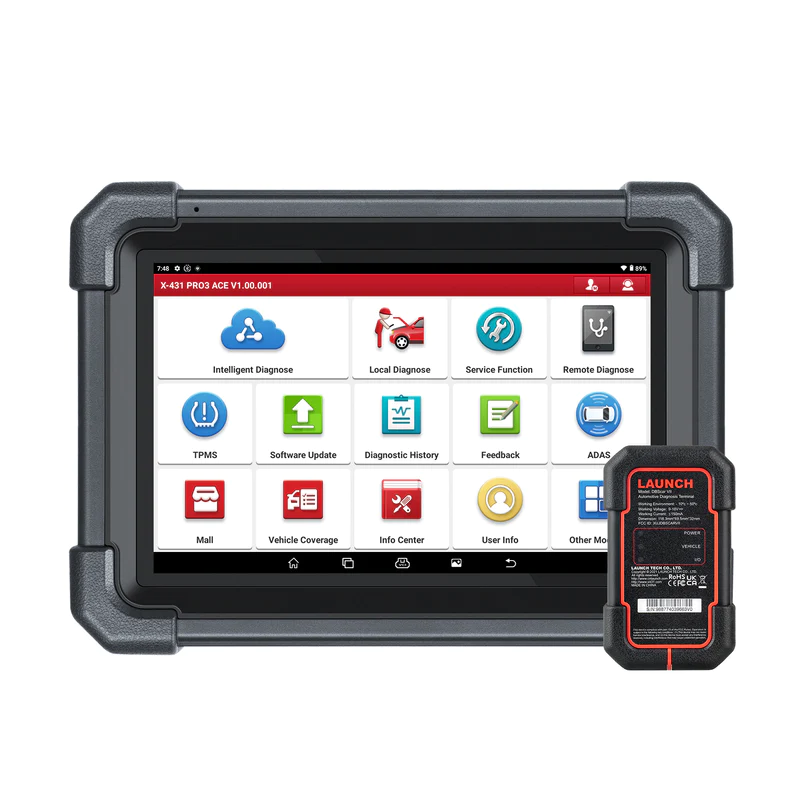

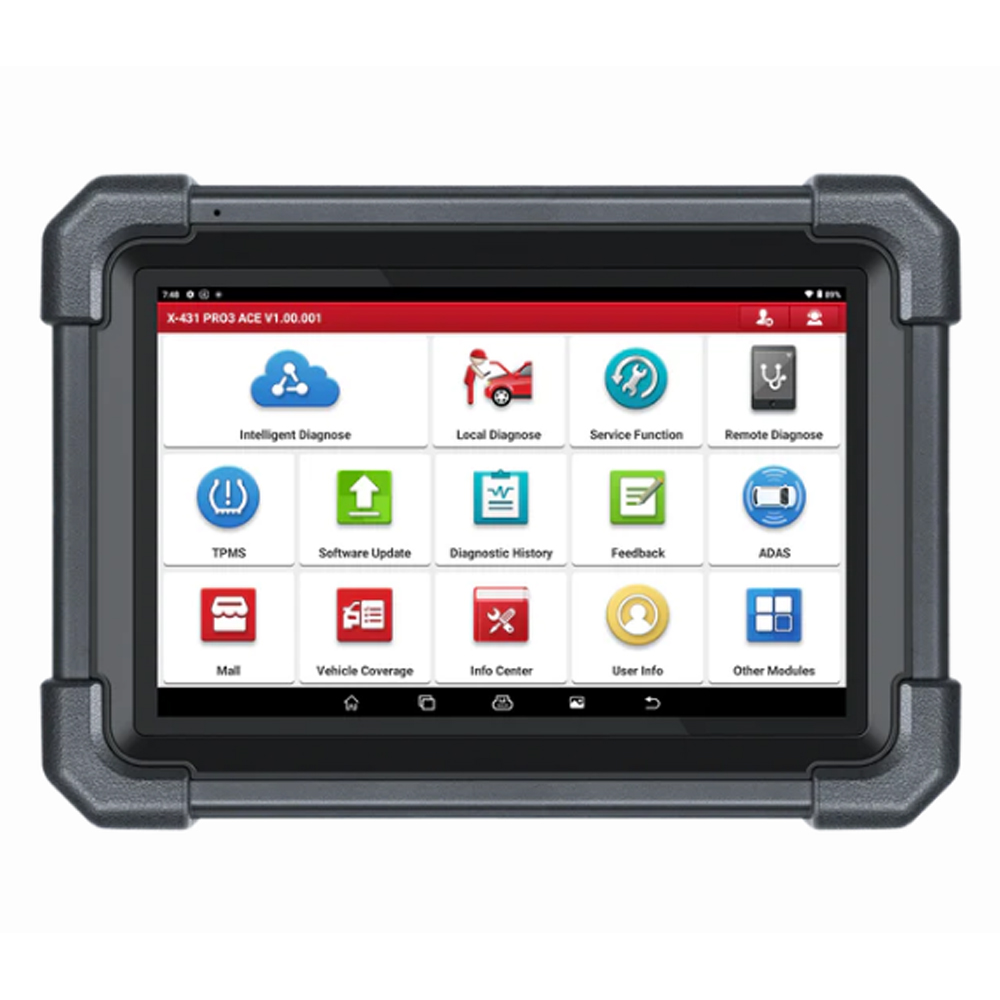

Launch X-431 PRO3 ACE is a 10.1-inch advanced smart car diagnostic device developed based on Android 10.0 system. It is equipped with a 2.0Ghz 4-core high-efficiency processor, 4GB RAM + 64GB ROM large storage, and is equipped with a high-endurance battery. It runs faster, more stably and lasts longer. It not only supports passenger car diagnosis but also supports commercial vehicle expansion modules, making the diagnostic function more powerful.

Launch X431 PRO3 ACE Diagnostic Tool

Highlights:

1. With DBScar VII Bluetooth diagnostic connector, Supports CAN FD, DoIP protocols
2. Full system diagnostics + bi-directional control + 38 service functions
3. Supports ECU offline/online coding, Refresh Hidden, VAG Guided Function
4. Supports FCA AutoAuth access
5. Support Topology mapping
6. Supports 24V Truck Module, endoscopes, battery detection, oscilloscopes, sensors, IMMO programmer and other expansion modules to make the diagnostic function more powerful
7. 2 years free update
8. Same functions as Launch X431 Pro3 APEX
9. Multi-language :Supports 25 Languages: Italian, English, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Serbian, Finnish, Swedish, Czech, Simplified Chinese, chinese traditional
Solve language barriers, switch for free.
X431 HDIII: enlarge diagnostic services to 24V heavy-duty trucks.
X431 BST360: Monitor vehicle battery health status.
Video Scope: Check the hard-to-reach parts (pump, engine, pipes, etc).
X431-PROG3: For advanced key programming & module clone.
ADAS mobile/PRO: Calibrate driver assistance systems.
WiFi Printer
To print out diagnostic reports, live data, and other information without taking too much time.
Scopebox: To quickly acquire circuit signals.
Sensorbox: To simulate vehicle sensor faults.
Multimeter: Allow you to measure the physical parameters such as voltage, resistance, frequency, etc.

LAUNCH DOIP Adapter Cable: For DOIP functions.

Notice:
Global Version for Customers outside the UK and EU countries
UK/EU Version for UK/EU Countries customers

Launch X431 PRO3 ACE Diagnostic Tool

X431 Pro3 ACE vs X431 Pro3s+ V2.0

In addition to changes in appearance, X431 Pro3 ACE also adds some new functions, such as topology diagram, CAN FD protocol, oscilloscope expansion, key programmer expansion, and 38+reset.
In terms of machine hardware, it has larger memory and an updated Android 10 system, which runs faster and has more complete diagnostic software.

Launch X431 Pro3 ACE Functions:

All System Diagnosis:

The LAUNCH X431 PRO3 ACE auto code reader is a cost-effective automotive scanner, that offers OE-level diagnoses on all available electronic systems, which can read/clear codes, data stream, read control module information for ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, ESP systems, etc.

Supports OBD2 Full Functions:It supports OBD ll functions to help you turn off the annoying instrument fault indicator and also can read/clear codes, O2 sensor test, I/M readiness, On-board monitor test, read data stream, display freeze frame data, EVAP system test, retrieve vehicle information (VIN, calibration ID, calibration verification numbers)

Supports Full System Diagnostics: Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/Self Leveling Suspension systems Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System Stabilizer/Intelligent Parking Assist/Door Motors/Audio systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/DP.F Reset Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Reset / Sliding Doors / Electronic Throttle Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics … and more.

Launch X431 PRO3 ACE Diagnostic Tool

Full 10 Mode OBDII/EOBD/JOBD Car Diagnostics Functions:

1.Reading Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitors.
3.Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6.View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8.On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems
9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10.Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

ECU Coding:

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.

1.Online Coding: Compatible with VW/ Audi/ Skoda/ Ford/ Lincoin/ Mazda ONLY
2.Offline Coding: Compatible with Benz/ BMW/ Ford/ Mazda /Jaguar /Vauxhall /Opel, etc
3.Refresh the Hidden Features(Personalization)
4.Component Matching: Matching, relearning, calibration
5.Customize OE-Settings(Retrofitting/Modification)

Note: Coding functions vary by model. Check the compatibility by sending VIN to us

Launch X431 PRO3 ACE Diagnostic Tool

Bi-directional control :

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , X431 PRO TT have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.

Here are some other examples of active tests, which help you locate faults in the shortest time, saving time on troubleshooting:

Injector Buzz Test;
Fuel Pump & Valve Tests;
A/C Compressorclutch Activation;
Turn the Wipers ON/OFF;
Modulate Throttle ON/OFF;
Acceleration Device Test;

Launch X431 PRO3 ACE Diagnostic Tool

38+ Resets functions:

Launch X431 PRO3 ACE Diagnostic Tool

Supports CANFD and DIOP protocol:

CANFD :

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

DOIP:

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH X431 PRO3 ACE save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).
( Note : this is car list that CANFD and DIOP supports , X431 PRO3 ACE also supports other cars , more than about 100+ brands , like for bmw , for vw , for ford etc , there has the detailed car list in the following description , you can check )

FCA AutoAuth Access: Bypass SGW in FCA Vehicles

you now have access to the security gateway module on 2018 and newer Fiat Chrysler vehicles, so that the diagnostic tool can clear codes, run bi-directional active tests, actuations, relearns or even IMMO key programming (pulls PIN & write), ADAS calibration assistance etc.
*Note: Update to get this new Function. Since November 23, 2022, all FCA-supported regions will require an account purchase to log in AutoAuth. The payment is charged by AutoAuth directly. LAUNCH is not involved in any transaction process. Reach us for more detail.

Remote diagnosis:

Remote diagnosis can realize real-time communication between equipment and equipment or equipment and computers, complete remote diagnosis of vehicles, and make it a reality for repair technicians to diagnose vehicles thousands of miles away.

Anto VIN

Through “smart diagnosis”, you can quickly read the vehicle VIN code, quickly enter the diagnosis, and check the historical diagnosis records

Extra functions:

IMMO Function: LAUNCH X431 PRO3 ACE scan tool has the immo function which is similar to x431 V’s anti-theft key car model. It can add a new key and disable the lost car keys,but only covers some 3.5th gen. Volkswagen, Audi, Skoda, Seat, and some Asian cars.
4 in 1 Live Data Stream: The scan tool X431 PRO3 ACE scan tool shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.
Data Recording Functionality is convenient, customer can record the live data stream for up to 4, simultaneous, PID’s. Once these have been recorded they can be played back in text format and/or graph format.
Data Playback supports two graphs (independent) or 4 PID’s graphed (combined). Playback timeline can be scrolled, paused, viewed, etc. There’s quite a bit of power in the graphing.
One Click to Generate Report: Launch X431 PRO3 ACE obd2 scanner support auto generate and store vehicle diagnostic report which can let your mechanic know how to do vehicle inspection and maintenance.
Print and Share Report: The diagnostic report can help you save time to analyze the problem, it is very great for repair shop , mechanics can print out the vehicle report for customer.The diagnostic report can be shared to email.
Displays Error Codes With Explanations: Click on the “Code Search” icon to dig more. It will switch to Google to show you more analysis of trouble codes, reasons why such faults occur, and even YouTube links.
With Online DTC Code Search: Search the DTC definition on “Google” for more online help & tips.
Launch X431 PRO3 ACE Diagnostic Tool
LAUNCH X431 PRO3 ACE Supports Car List :

Supports 10000+ car models from America, Europe, Asia (Including Russian car models, Chinese car models, Indian car models, Malaysian car models, Australian car models, Brazilian car models, Latin American car models and other national models,including cars, SUVs, minvans, 12v light-duty trucks, gasoline cars and diesel cars.

EUROPE Cars :

For Audi, For Mercedes-Benz, For Maybach, For BMW, For Mini, For HCBMW, For Rollsroyce, For Citroen, For Fukang, For Ferrari, For Fiat, For Abbas, For Lancia, For Romeo, For NanjingFiat, For GAZ, For LandRover, For Jaguar, For Martha Lahti, For Open, For GMSA, For Vauxhall, For Peugeot, For DFPeugeot, For Porsche, For Renault, For Dacia, For Rover, For SAAB, For Skoda, For Seat, For Smart, For Transporter&V-Class, For VAZ, For Volvo, For VW, For Bingley, For Bugatti

America Cars :

For Brazil Fiat, For Brazil GM, For Chrysler, For Dodge, For Jeep, For GM, For Buick, For Cadillac, For Chevrolet, For Ford, For ChinaFord, For Lincoln, For EuropeanFord

Asia Cars :

For Daewoo, For Daihatsu, For Honda, For Acura, For DFHonda, For GZhonda, For Hyundai, For Ikco, For India Mahindra, For India Maruti, For India Tata, For JPIsuzu, For TLIsuzu, For Kia, For Luxgen, For Mahindra, For Malaysia Asia Pacific Perodua, For Malaysia Asia Pacific Proton, For Maruti, For Mazda, For YQMazda, For Mitsubishi, For Nissan, For Infiniti, For DFNissan, For Perodua, For Proton, For SAIPA, For Ssangyong, For Subaru, For Suzuki, For TATA, For Toyota, For Lexus, For TJToyota

Australia Cars :

For Australia Ford, For Australia Horton

China Cars :

For Chang’an, For ChangCheng, For Chenghe, For DR automotive, For ECUADI, For BYD, For Foton, For Hafei, For Haima, For Brilliance, For Jiangling, For Iveco, For Jac JAC refine general, For Gonow Auto, For Xiamen Golden, For Kowloon, For Lifan auto, For GSMW, For SAIC Chase, For MVW Automotive, For Chery, For SAIC and MG, For SGM, For CHCHEVROLET, For CHBuick, For CHCadillac, For Tianjin FAW, For XinKai, For ZhongShun, For ZOTYE, For Zhongxing

X431 PRO ACE Parameter:

OS: Android 10.0
Processor: 2.0GHz, quad-core
Memory: 4GB
Storage: 64GB
Display: 10.1 inches, LCD screen
Resolution: 1280*800
Camera: rear 8 million pixels
Wi-Fi: 2.4GHz/5GHz
Battery: 6300mAH 7.6V
Working temperature: 0℃~50℃
Size: 435×305×372(mm)
Launch X431 PRO3 ACE Diagnostic Tool

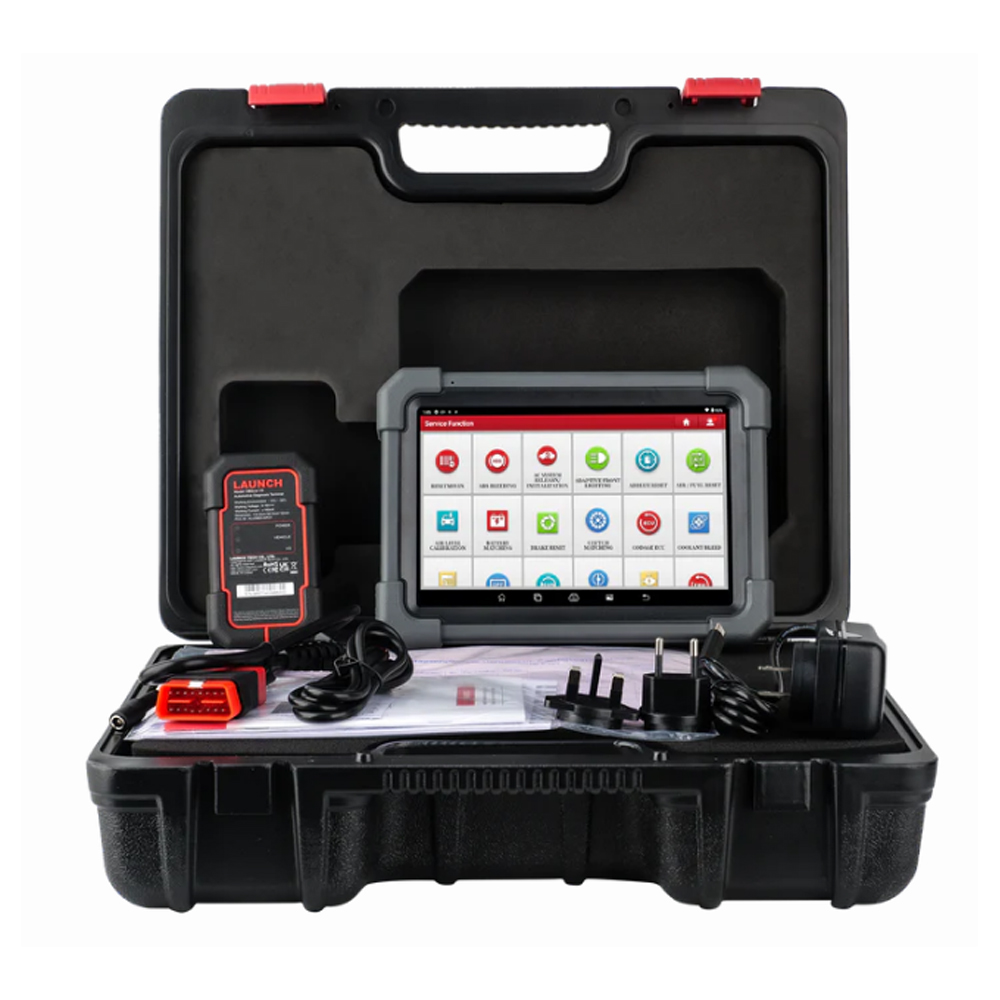

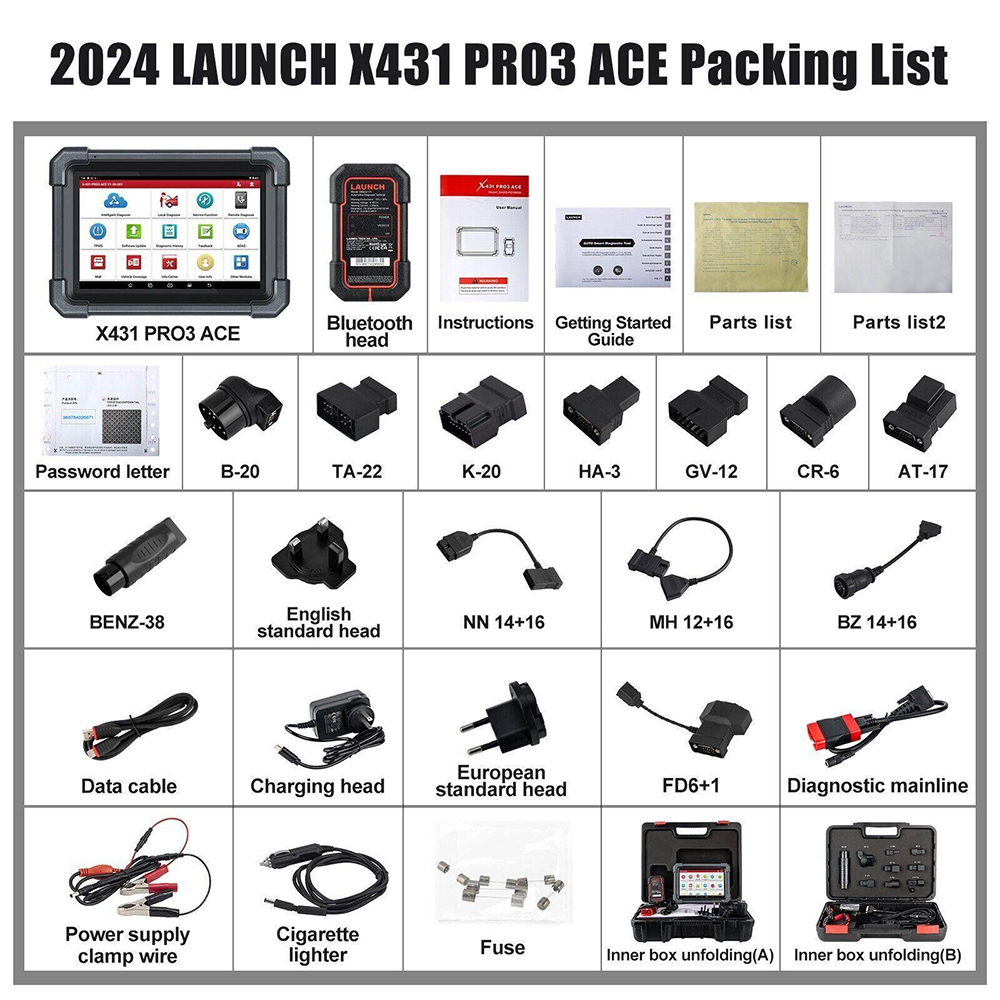

Package list:

1* LAUNCH X431 PRO ACE Display tablet

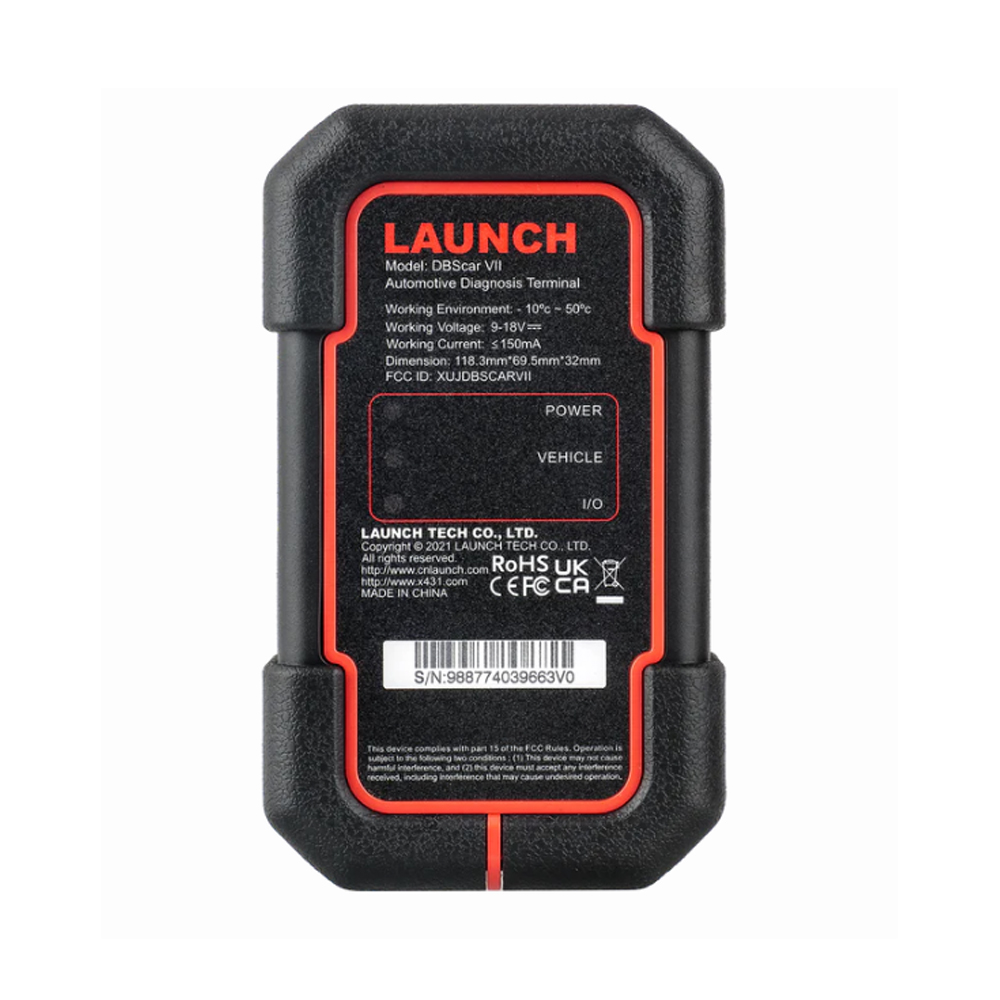

1* DBSCAR VII connector,US/UK/EU Plug
1* HD15M to OBDII 16 adaptor
1* Fuse
1* Password envelope
1* Quick start guide
1* User manual

12 Connectors & 4 Cables:
BENZ-14,BENZ-38,BMW-20,CHRYSLER-6, FORD-6+1, NISSA-14+16 ,GM/VAZ-12,HONDA-3 ,KIA-20 ,MI TSUBISHI/HYUNDAI-12+16 ,TOYOTA-22,TOYOTA-17;

Cables:
HDB15F to HDB15F data cable,Type-A to Type-C USB cable,Cigarette lighter cable,Battery clamps cable

SKU: SP511 Category:
Weight 11 kg
Version

EU Version, Global Version
