Launch X431 GIII X-PROG 3 Advanced Immobilizer & Key Programmer XPROG 3 Chip Reader
X-PROG 3 advanced immobilizer & key programmer is a powerful chip reading device that can read/write keys to the vehicle. Compatible with X-431 series diagnostic scanners, X-PROG 3 enables Anti-theft type identification, Remote control matching, Key chip reading & matching, anti-theft password reading and anti-theft component replacement.
1. All-in-One Key Programmer. Integrates Multiple Function Models
2. Reads & Writes Most Engine/ Gearbox ECUs Without Disassembling the Shell
3. Compatible with Multiple X-431 Series Diagnostic Tablet: X-431 V, X-431 V+, X-431 PAD V, X-431 PAD VII, etc
4. Supports VW/ AUDI MQB Platform Engine ECU Replacement or Cloning (Read engine ECU data directly from the key).
5. Works with Reprogramming Device to Backup/ Restore Programming Data (For Bosch/Siemens engine ECU).
6. Enables Reading/ Writing EEPROM, On-Board MCU and BMW CAS4+/ FEM Chips, Mercedes-Benz Infrared Keys, Generating Special Keys, Reading BMW Engine ISN Code.
VW, Audi, Skoda, SEAT, BMW, Mercedes-Benz, Toyota… (updates to be continue)
Engine system, automatic transmission, instrument system, CAS, body system, lock system…
X-431 PRO GT, X-431 PRO V4.0, X-431 PRO 3 V4.0, X-431 PRO 5, X-431 PAD III V2.0, X-431 PAD V, X-431 PAD VII
1. Integrated the functions of key matching/ copy, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Supports common ECU/ MCU/ EEPROM major manufacturers, with over 1200 product models, and constantly updating.
3. Supports ECU replacement for all lost without disassembly for VW/AUDI non-35XX instrument (it can be read directly through independent harness without removing the IC).
4. Supports ECU replacement for the fourth-generation of VW/ AUDI engine;
5. Supports ECU replacement for the fifth-generation of VW/ AUDI Bosch and Siemens engines.
6. Supports the all lost and replacement for the fourth generation of AUDI EZS, comfortable ECU, and KESSY IC.
7. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
8. Supports the BMW CAS4/CAS4+ module replacement.
9. Supports the ECU cloning and replacement for BMW Siemens engines.
10. Erase the password for Mercedes-Benz engine and gearbox within 3S.
11. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.
12. Supports VW/ AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
13. Supports ECU replacement for the fifth-generation of Audi (0AW/0B5) gearbox.
14. Supports reading, writing & cloning the ECU for the fourth-generation of VW UDS engine.
15. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
16. Works with reprogramming device to backup/ restore programming data (For Bosch/ Siemens engine ECU).
Supported ECU MCU List:
(Support more than 1000 models, keep updating)
|MediaTek||Renesas V850 SPI|
|MicroChip||Renesas V850 UART|
Support EEPROM List:
support more than 1000 models, keep updating
How to Use X-PROG3 to Read and Write Data?
Method 1: Directly connect to OBD16 for key matching, data reading and writing, etc

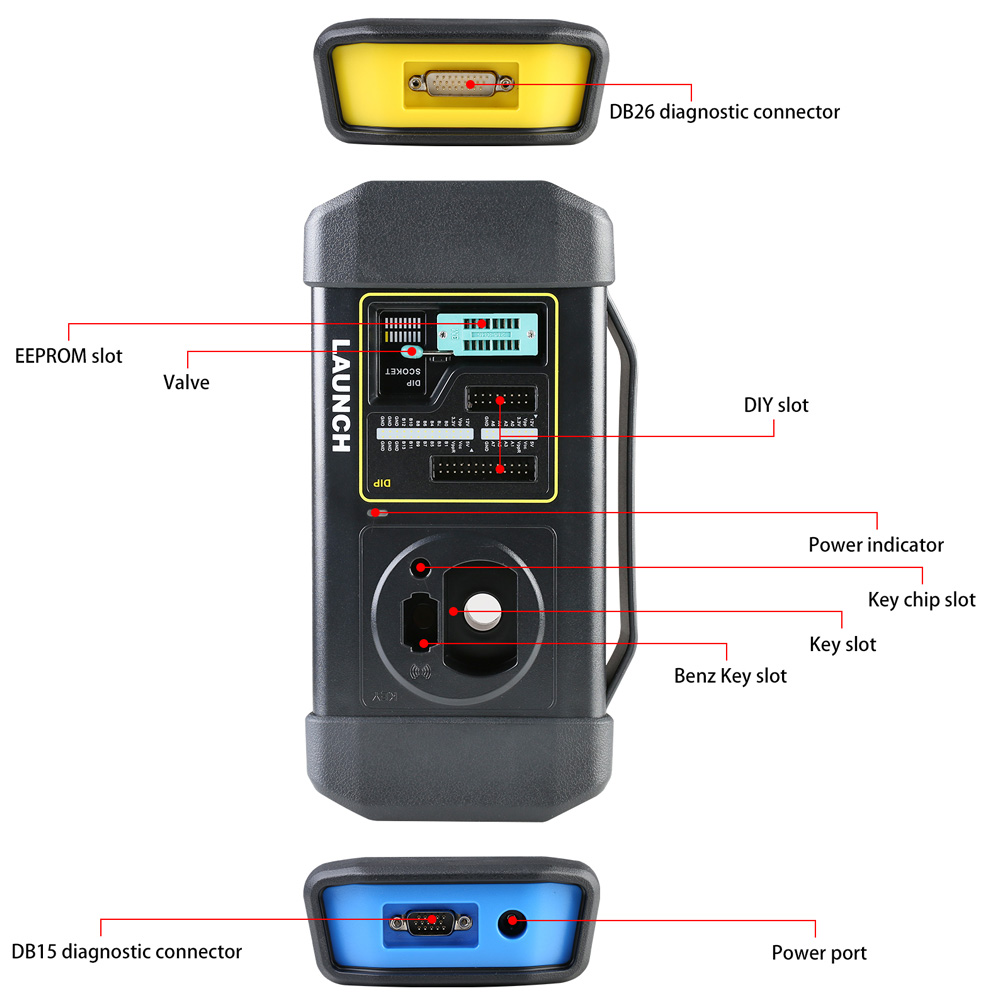

Method 2: Place the anti-theft EEPROM or MCU chip in the chip burning socket, and then insert the chip burning socket into the slot of the immobilizer programmer locker and lock it to realize the data interaction between the IC anti-theft chip and the diagnostic host
Method 3: After removing the ECU from the car, connect the anti-theft ECU pin to the DIY slot of the immobilizer programmer through the cable to realize the data interaction between the anti-theft ECU and the diagnostic host.
Launch X-Prog vs X-Prog 3
|Item Name||X-prog||X-Prog 3|
|EEPROM Read and Write||×||√|
|MCU Read and Write||×||√|
|Mercedes Benz Key||×||√|
|VW 4th instrument disassembly/reading/all lost||×||√|
|Read Engine via Bench Mode||×||√|
|Read Engine via Boot Mode||×||√|
|VW 4th All Key Lost without Account||×||√|
|Read and Write Key||√||√|
|Read BMW ISN||×||√|
|Read CAS4+/FEM Chip||×||√|
|Audi 5th generation steering column chip reading and writing||×||√|
|Replace OBD Reading Component||√||√|
Q: If the X-PROG 3 can reset the ELV (electric steering column lock) on the Mercedes W169?
A: Yes, it supported
Q: Does Xprog3 support immo program
A: Yes, it does
Q: Whether X-431 PRO V7.0 can work with X-Prog 3?
A: No, it can not, it need work with X431 V 8inch and above X431 Scanner.

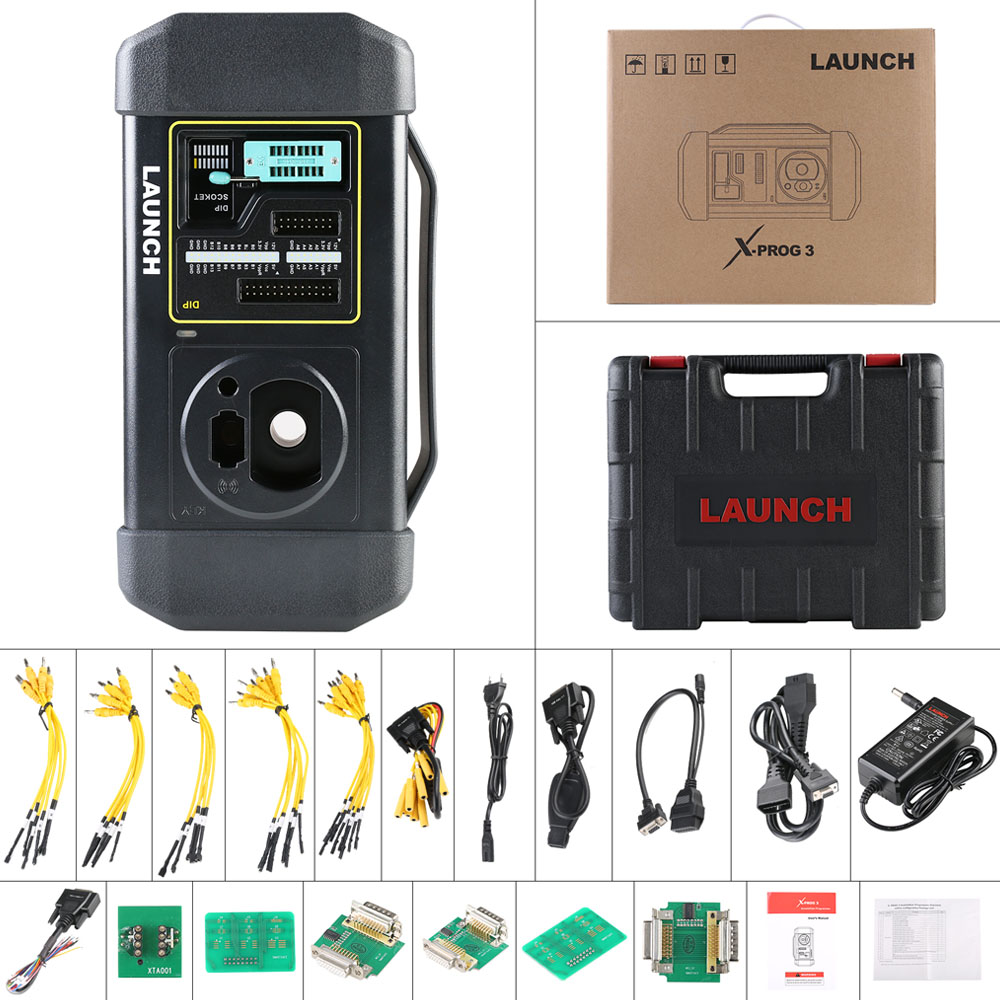

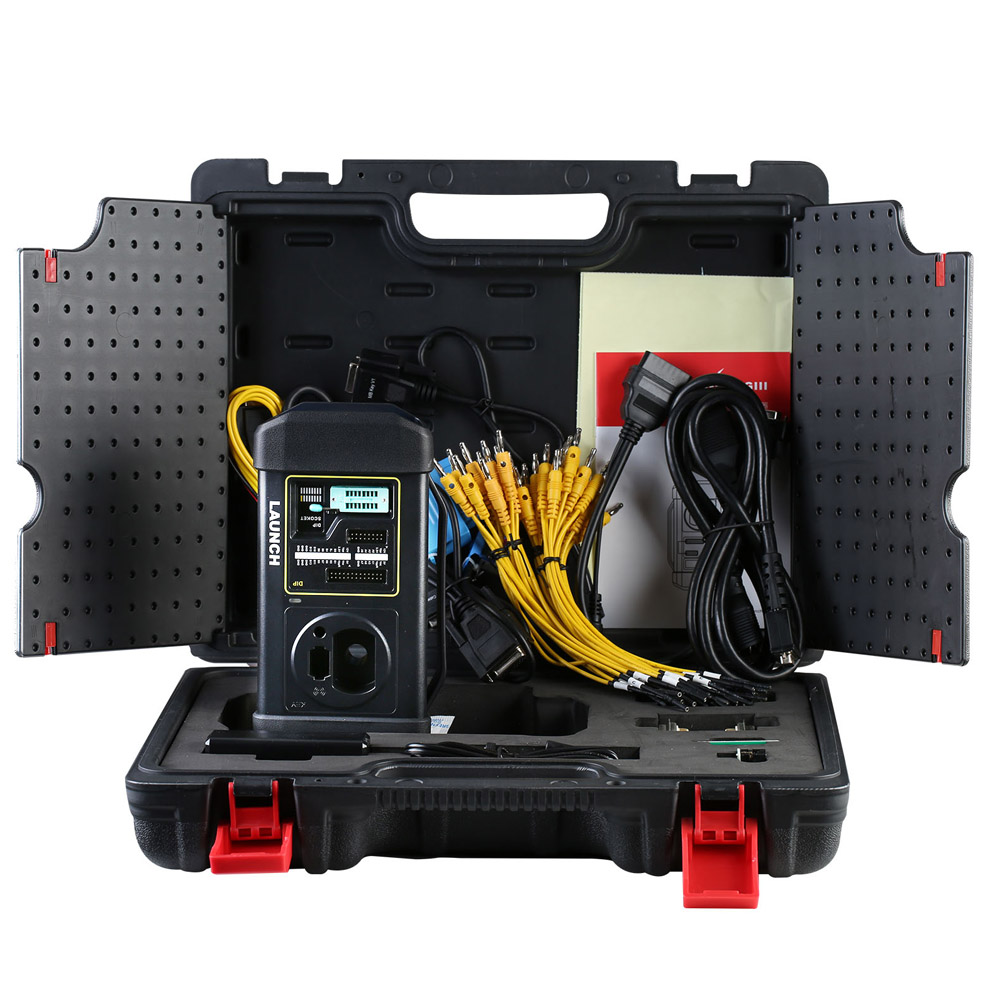

• Main unit
• Power adaptor
• Main diagnostic cable
• The fourth-generation data acquisition cable
• The fourth-generation of EEPROM data acquisition cable(without dismantling dashboard)
• BENCH mode cable
• MCU converter V1
• MCU converter V2
• MCU cable with multiple leads
• EEPROM chip adaptor
• Benz infrared analog acquisition key
• MCU cable with multiple leads
• EEPROM converter
• User Manual
