LAUNCH CRP129X OBD2 Scan Tool Android Based Upgraded from CRP129, 4 System Diagnoses with Oil Reset, EPB/SAS/TPMS and Throttle Service, Battery Voltage Graghing, AutoVIN for Small Shops and DIYers
The Creader Professional CRP129X, based on the classic and multifunctional diagnostic tool CRP129, is ingeniously designed for technicians to troubleshoot four systems with its state-of-art hardware/software plus multiple useful features such as five reset capabilities, in most of the major vehicles on the road today.
English, Spanish, French, German, Italian, Russian, Portuguese, Japanese, Korean,

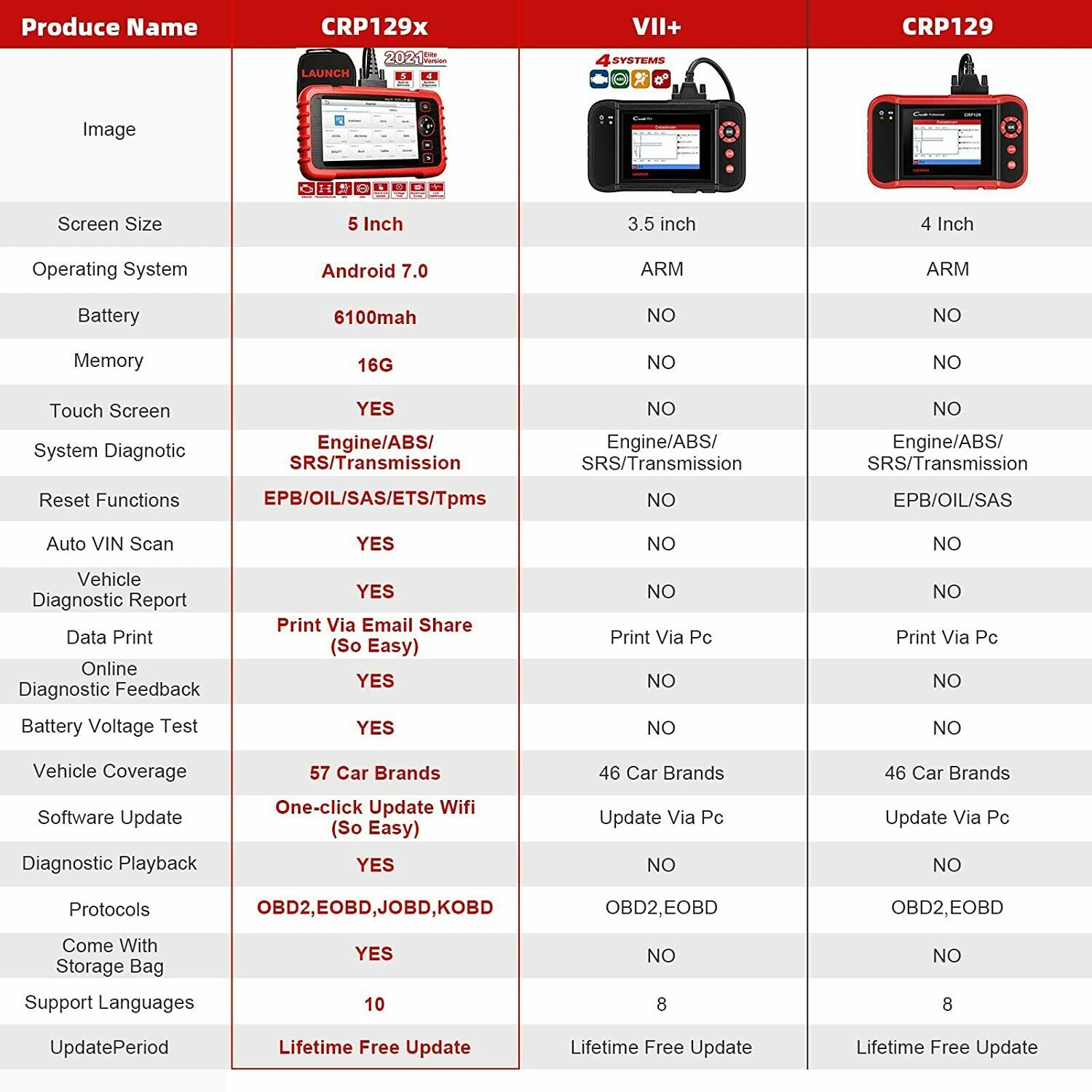

The Upgraded Version of Classic Scanner CRP129
The new-released LAUNCH scanner CRP129X, as the advanced version of CRP129 sharing the same four system diagnoses feature, is equipped with:
1. A larger 5″ display screen;
2. Two more special services (TPMS Service, Throttle Adaptation);
3. AutoVIN technology;
4. Automatic Inspection Report
Four System Diagnoses
1. For Engine System
the diagnostic tool can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
2. For Transmission:
It makes great sense in the safe driving when your car is slipping or difficult to shift. This diagnostic scanner can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.
3. For ABS System:
Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.
4. For SRS System:
SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.
Five Most Commonly Used Services
1. Oil Reset:
It is also enabled with an oil service and lamp reset mechanism, a function which ensures that the vehicle engine is maintained in its rightful healthy self.
2. SAS Reset:
It helps clear the faulty steering angle sensor memories and plays an important role in the steering angle sensor calibration.
3. EPB Service:
Reset the brake pad after the repairs in electronic parking brake system are done. By using this system, the braking process is therefore made much simpler and easier.
4. TPMS Service:
Looks up the tire sensor IDs from the vehicle’s ECU, and performs TPMS programming and reset procedures after tire sensors are replaced.
5. Throttle Adaptation:
Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.
All Modes of OBDII Functions for Repair Work
This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:
$01 – Request Current Powertrain Diagnostic Data
$02 – Request Powertrain Freeze Frame Data
$03 – Request Emission-Related Diagnostic Trouble Codes
$04 – Clear/Reset Emission-Related Diagnostic Information
$05 – Request Oxygen Sensor Monitoring Test Results
$06 – Request On-Board Monitoring Test Results for Specific Monitored Systems
$07 – Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed Driving Cycle
$08 – Request Control of On-Board System Test or Component
$09 – Request Vehicle Information
$0A – Request Emission-Related Diagnostic Trouble Codes with Permanent Status
Battery Voltage Functions
This menu can show real-time graphing battery voltage of the car.
55 Car Brands Supported
LAUNCH CRP129X has wide compatibility rates with several modes of the OBD2 motor vehicles. The scanner works on pretty much any car made from 1996 and forward, as long as the car has a 16-pin OBD-II port:
Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Samsung, Subaru, Suzuki, Toyota, Tlisuzu
Abarth, Alfa Romeo, Audi, BMW, Bugatti, Dacia, Eu Ford, Fiat, Jaguar, Lancia, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Sprinter, Landrover, Citroen, Volvo, VW, Vauxhall
Buick, Cadillac, Chevrolet, Dodge, Ford, GM, Chrysler, Jeep, Lincoln
Au Ford, Holden
In addition, this diagnostic device is also known to support vehicles falling within the controller area network (CAN) category. In this regard, it is said to have the capacity to retrieve both the generic and manufacturer specific codes. Its use is therefore widespread.
If you work on different vehicles regularly, then you really should consider getting this scanner.
The diagnostic tool equips with the AutoVIN technology which means that it will automatically read and store your vehicle’s VIN number, in one touch. It immediately identifies your car, and you don’t have to enter the year, make, engine, etc. of your car.
Automatic Inspection Report Uploaded for Convenience
There might arise certain problems which would be beyond your level of understanding while diagnosing a vehicle. LAUNCH CRP129X allows you to save the Inspection Report and transfer the report to the Cloud Server, or even print the data via the PC.
Update and Warranty
Lifetime Free Update Online.
One Year Warranty for any quality problems.
