LAUNCH X431 O2-2 Scopebox analyze data Solving Complex Electrical Faults for launch PAD V /PAD VII

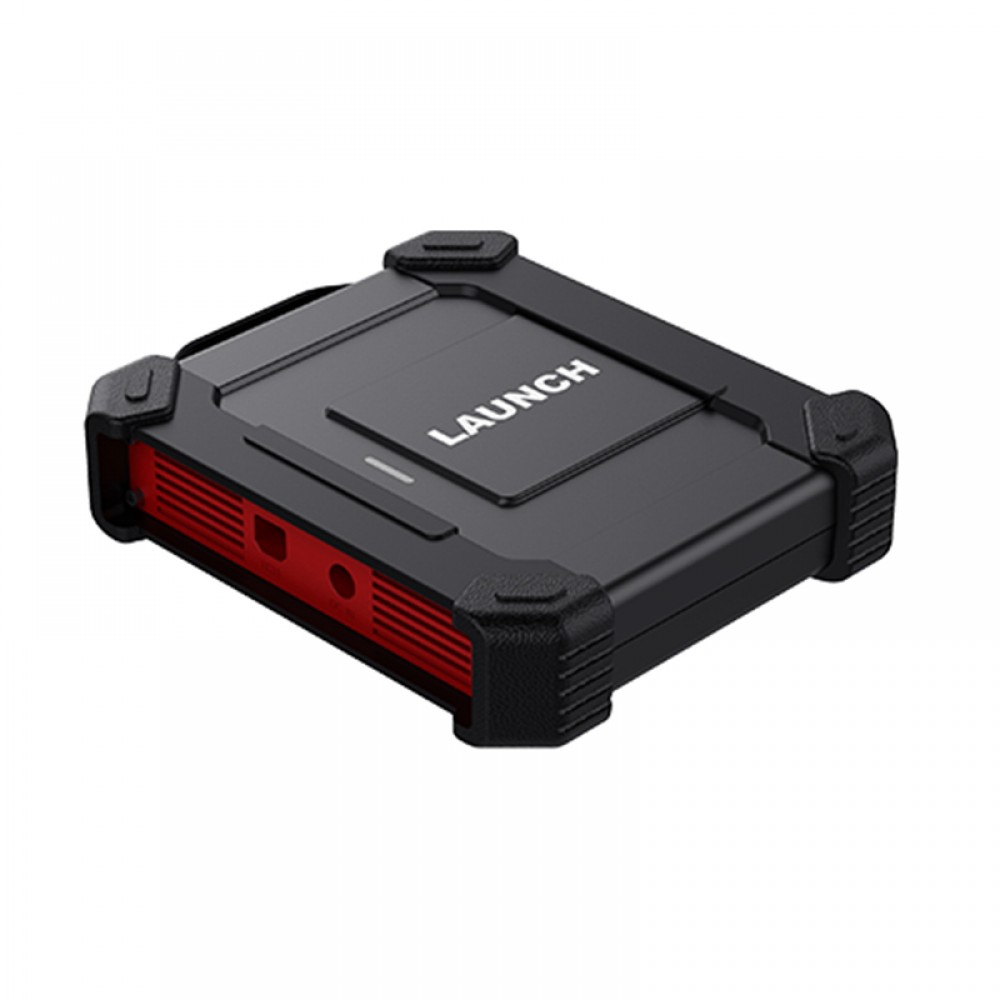

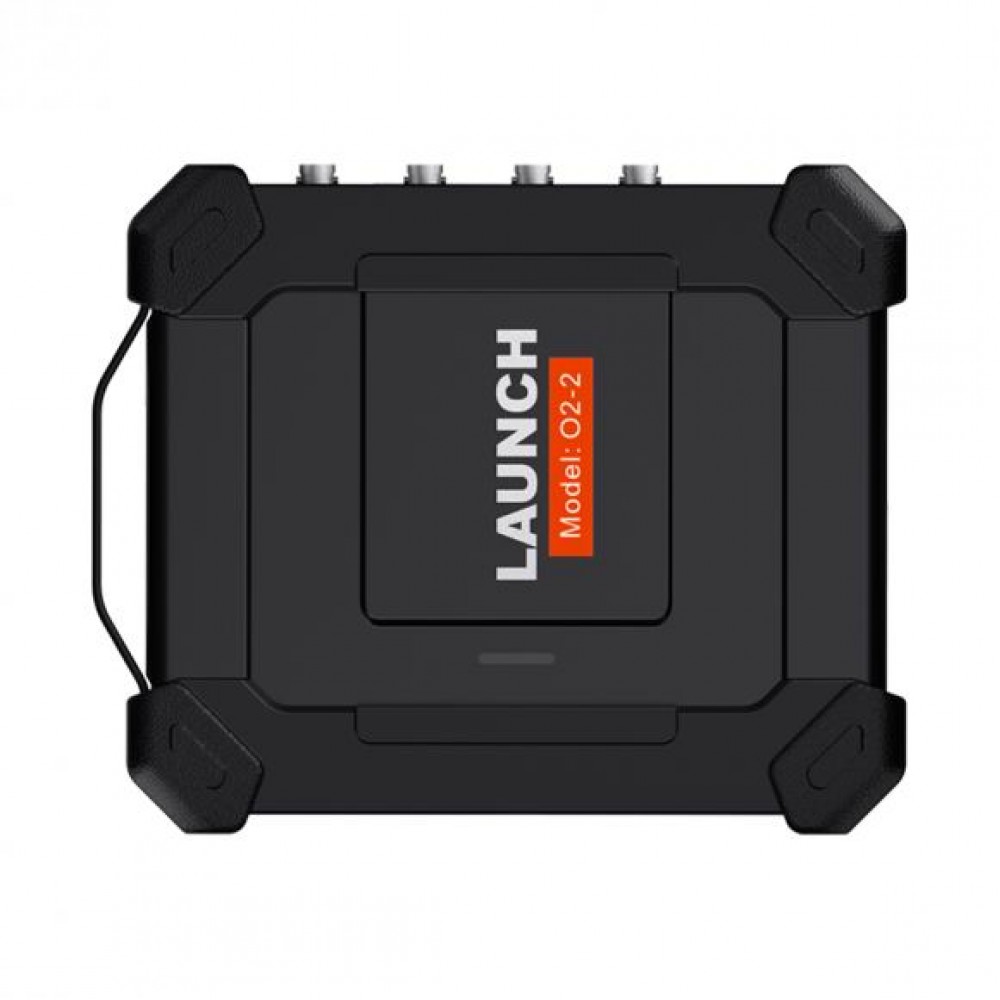

Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool’s functionality.
- 1.Features the ability to record and playback high-resolution waveform data for future analysis. 2.One key enable function allows users to capture a particular waveform which makes the process 70% more efficient as compared to other scopes. 3.Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch. 4.Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency.
5.Use the zoom in/out feature to review precise details.
6.Customizable personal system settings that can be saved as configuration files for viewing.
7.The self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.
8.Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.
9.Multiple automotive tests include circuits, sensors, actuators, ignition tests and more.

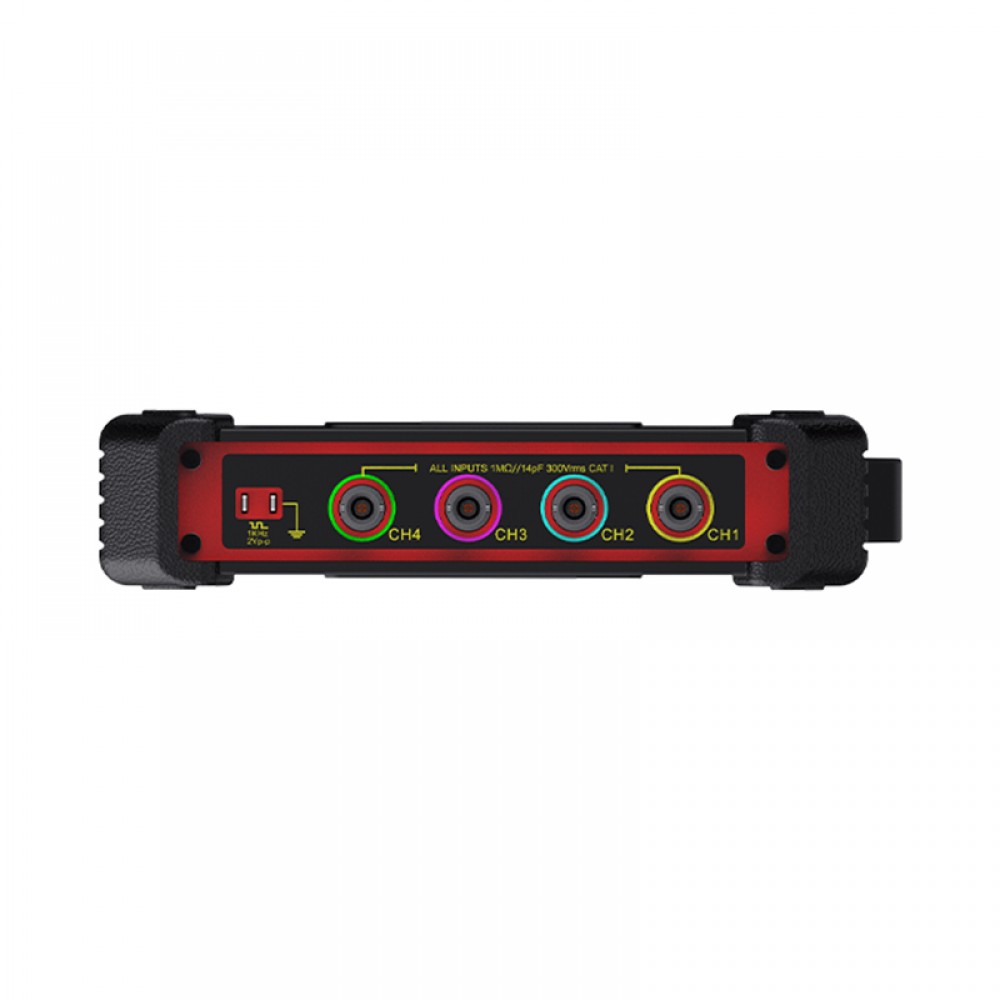

Channels 4 Bandwidth 100MHz Rising Time 3.5ns (typical) Accuracy ±3% Input Impedance 1M ±1.5% Input Type Single-ended, BNC Connector Input Coupling DC, AC Overload Protection ±200V on single input Timebase Ranges 1ns~1ks (1 Channel)
1ns~1ks (2 Channels)
1ns~1ks (4 Channels)

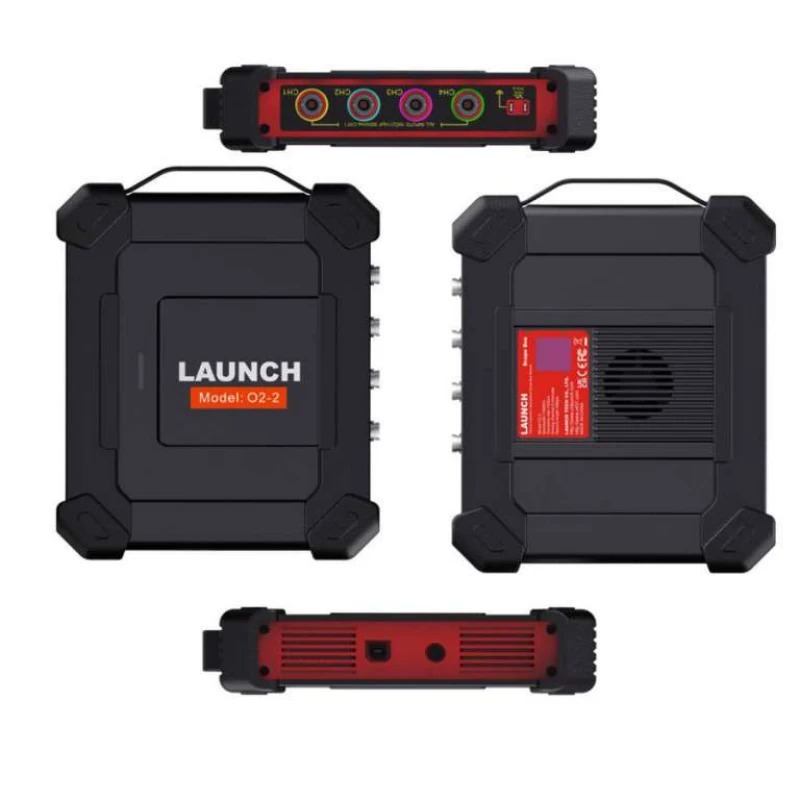

Vertical Resolution 8bits Buffer Memory 10M (for 4 Channels) Power Interface USB port, DC IN port Data Exchange Via USB Trigger Mode Normal, Auto and Single SEQ Advanced Triggers Edge, Pulse width
