LAUNCH PFP100 PFP-100 Programming FLASH POWER


$550.00
Free Shipping

LAUNCH PFP100 Programming Flash Power

is a best tool for vehicle (all types of car) diagnosis. It can prevent failure and abnormal during the process of programming due to low voltage. Moreover LAUNCH PFP100 Programming Flash Power is used by garages, car electrician, car dealerships. Mainly it used for supplying continuous power to the vehicles battery, during all stages of ECU reprogramming and flashing, according to the request of car OEMS. Constantly detect the battery state to prevent damage from overcharging as well as battery protection with automatic stop and alarm

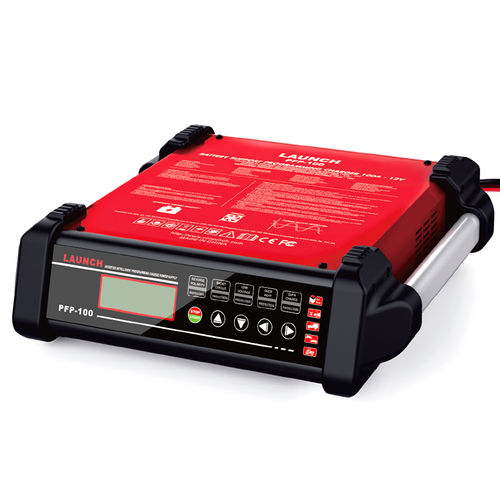

LAUNCH PFP100FLASH POWER is a professional 100A vehicle battery power support unit with high-performance, compact size and high-quality.

 Introducing the PFP-100 a professional 100 Ampere vehicle battery power support unit with high-performance, compact size and high-quality. It is used by garages, car electricians and car dealerships, mainly for supplying continuous power to the vehicles battery, during all stages of ECU reprogramming and flashing, according to the request of car OEMS.

Features
1. 5 Protection Modes: Reverse Protection, Short Circuit Protection, Low Voltage Protection, Overheat Protection, Overcharge
Protection, Synchronous Rectification (220V only)
2. Charging Mode: The regular mode for battery that under normal condition
3. Exhibit Mode: Charging the battery continually in small current in showroom
4. Programming Mode: The programming voltage of 12-16V can be directly selected
5. Hidden Repair Mode: Auto repair if there is a minor issue of battery

Scope of delivery:

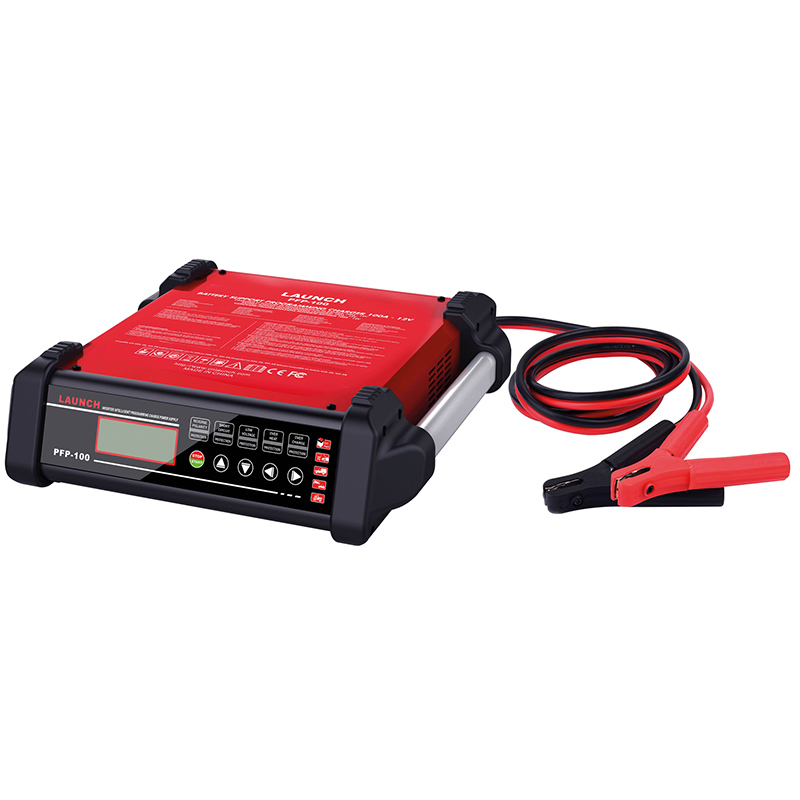

LAUNCH PFP100 unit,
Cable 3m long,

launch_elite
Following protection can be applied:

Overcharge protection: The machine will constantly detect the battery state to prevent damage from overcharging in the charging process.

Overheat protection: Flashpower will automatically stop charging when the machine is overheated.

Low voltage protection: When the input voltage is lower than required, the machine will not work.

Short circuit protection: The machine will not work and alarm when internal part short circuit occurs.

Revers polarity protection: The LCD displays, if the battery clip is reversed.

Product Paramenters

Input Voltage 110V, 220~240V/50~60Hz
Power 1200W
Max. Current 100A
Charging Voltage 12V
Programming Mode 2~16V/2~100A
MAH 10~1200Ah
Electric Cable Length 3m
Weight 12.7 KG
Dimension

511*481*257mm

SKU: PFP-100 Category:
Weight 10 kg
